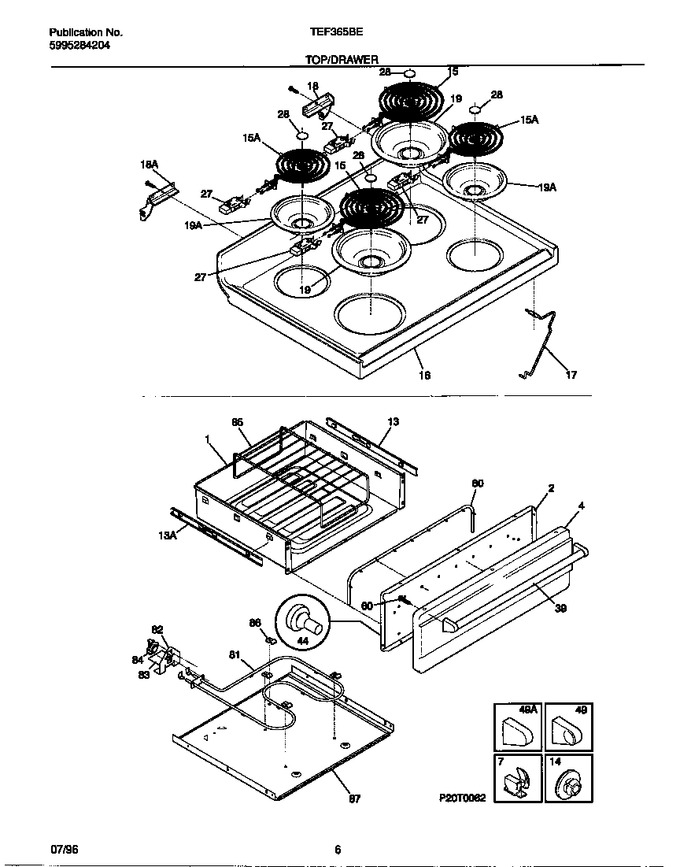

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316094601		Drawer-warmer		Appelez-nous	-
2	316092901		Liner, Drawer		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
13	316096500		Channel-drawer, Rh		Appelez-nous	-
13	316096501		Channel-drawer, Lh		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
15	318372211		Element-surface, Small/6 Inch   (Replaces: 08067762)			Immediately	$ 45.14
15	316442301		Element-surface, Large/8 Inch   (Replaces: 5303012223)			Immediately	$ 44.39
16	316020908		Main Top, Almond		Appelez-nous	-
17	316057601		Rod-maintop Support				$ 64.49
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
19	A316222301		Pan-surface Element, Large/8 Inch   (Replaces: 5303935053)			Immediately	$ 12.53
19	A316222201		Pan-surface Element, Small/6 Inch   (Replaces: 5303935055)			Immediately	$ 14.64
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
39	316019507		Handle-drawer, Almond		Appelez-nous	-
44	3131903		Bumper				$ 55.36
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
60	316089500		Screw-drawer Handle, 10-16 X .486, (2)				$ 13.46
80	316093000		Seal-door, Warmer Drawer		Appelez-nous	-
81	316093100		Element, Warmer Drawer		Appelez-nous	-
82	316093200		Bracket-mounting, Warmer Element		Appelez-nous	-
83	316093300		Shield-terminal, Warmer		Appelez-nous	-
84	316093500		Thermo Disc, Warmer				$ 138.39
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091902		Base-warmer		Appelez-nous	-
*25086	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
*25087	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*25088	316001725		Harness-wiring, Surface Element		Appelez-nous	-
*25089	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02
*25090	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
28A	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
28B	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
