SELECT A DIAGRAM

01 - Cover

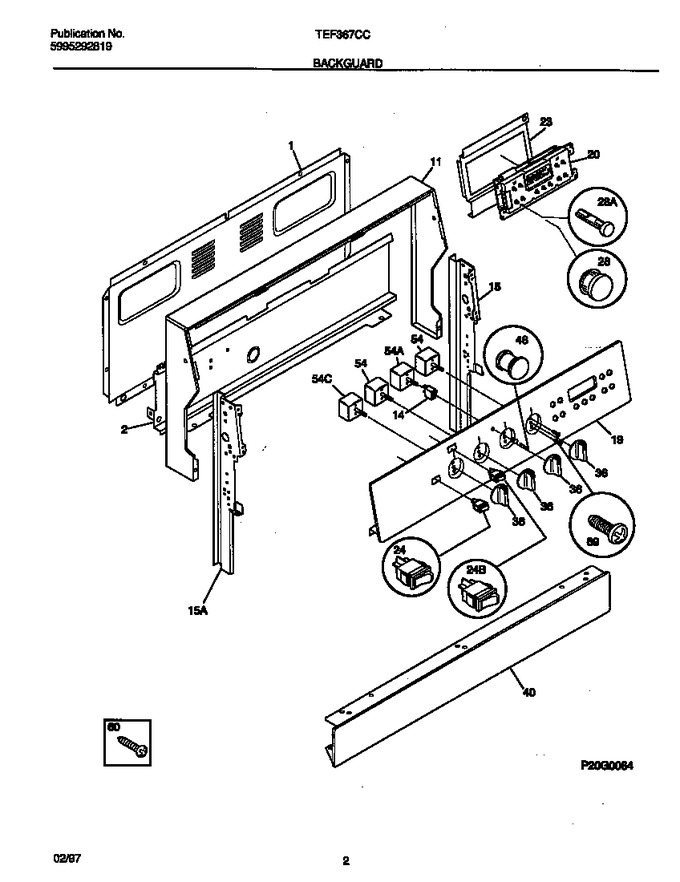

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316061842		Trim-wrapper, White		Appelez-nous	-
14	316022503		Light/lamp, Indicator, Yellow, 250 V			Immediately	$ 70.16
15	316023110		Support-backguard, Rh		Appelez-nous	-
15	316023111		Support-backguard, Lh		Appelez-nous	-
19	316076510		Panel-control, Metal, White		Appelez-nous	-
20	316080100		Clock/timer, Electronic		Appelez-nous	-
23	316079003		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, White, Oven Light   (Replaces: 316005607)			Immediately	$ 16.13
24	316083100		Switch-rocker, White, Dual Element   (Replaces: 316086901)				$ 89.31
28	316015103		Push Button, Clock/timer/eoc, Gray, (11)				$ 11.60
28	316080600		Push Button-shaft, Clock/timer/eoc, Black				$ 49.41
36	316015207		Knob-control, White		Appelez-nous	-
40	316062330		Panel, Manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
54	5304528972		Switch-6/8, Dual Element   (Replaces: 316049800)				$ 47.78
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
69	5303292005		Screw-switch Mtg, 8-32 X 5/32		Appelez-nous	-
*33840	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
