01 - Cover
02 - Backguard
03 - Body

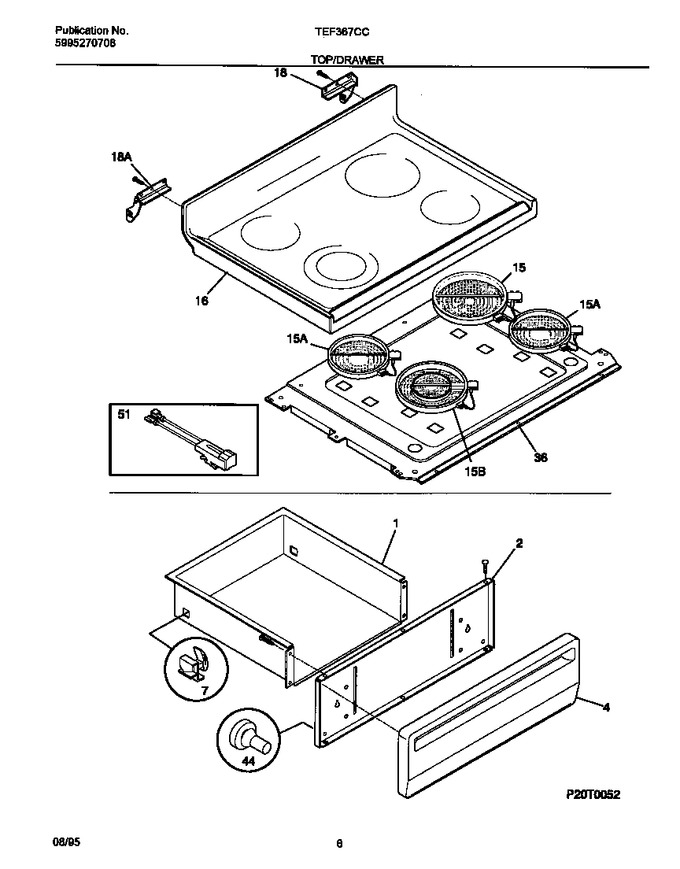

04 - Top/drawer
05 - Door
06 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011501 | Drawer-utility |
|
- | |||||
| 2 | 3131975 | Shield-panel |
|
- | |||||
| 4 | 316084406 | Panel-drawer, Almond |
|
- | |||||
| 7 | 3051163 | Glide,drawer ,rear |
|
Immediately | $ 19.41 | ||||
| 14 | 316035700 | Lens-light/lamp, Indicator (not Illustrated) |
|
- | |||||
| 15 | 318198834 | Element-surface, 2100 W, Large/8 Inch (Replaces: 316010204) |
|
$ 205.36 | |||||
| 16 | 316035503 | Main Top Assy, Glass/steel, Enamel, Almond |
|
- | |||||
| 18 | 5303273062 | Hinge-main Top (rh) |
|
- | |||||
| 36 | 316033610 | Panel-element Mtg, Glass Top |
|
- | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 51 | 316034802 | Light-indicator, Hot Surface |
|
- | |||||
| *28965 | 3203618 | Rivet-pop, Waring-plate |
|
- | |||||
| *28966 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| *28967 | 5303288567 | Screw, 8-18 X 3/8, (4) |
|
- | |||||
| *28968 | 5309951550 | Cleaner-cooktop |
|
- | |||||
| 15A | 318198817 | Element-surface, 1200 W, Small/6 Inch (Replaces: 316010203) |
|
Immediately | $ 192.78 | ||||
| 15B | 316049701 | Element-surface, Dual Coil, 8 Inch, 2100w/700w |
|
- | |||||
| 18A | 5303273063 | Hinge-main Top (lh) |
|
$ 48.41 | |||||
| 36A | 316023301 | Clip-spring, Element Mtg, (4) (not Illustrated) |
|
- | |||||
| 36B | 316041001 | Stud-index, Top Element (not Illustrated) |
|
- | |||||
| 4A | 08067785 | Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated) |
|
- |
