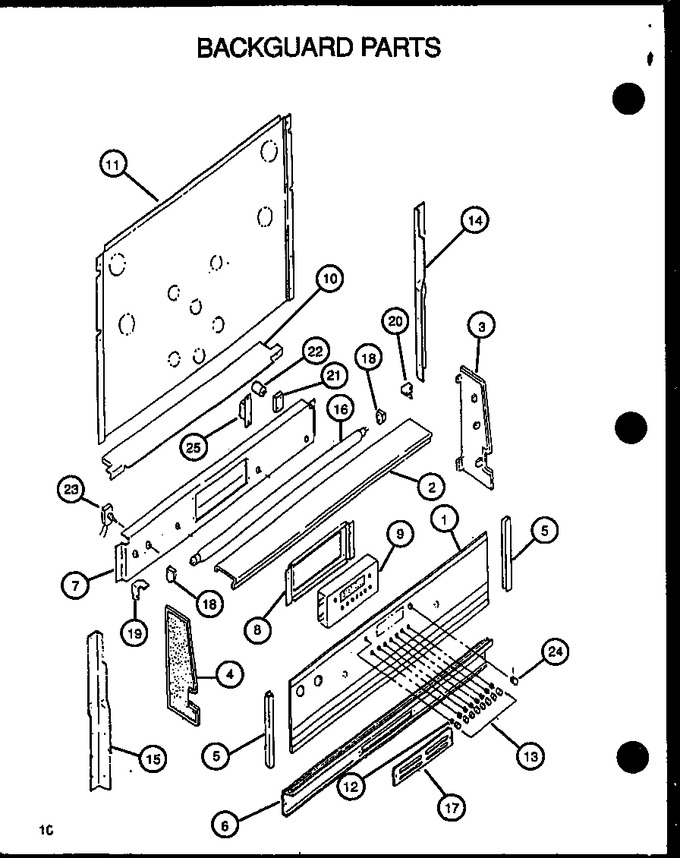

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0300460		Backguard Glass		Appelez-nous	-
2	Y0302431		Trim Top- Bkgd		Appelez-nous	-
3	Y0302983		End Cap, Rh		Appelez-nous	-
4	Y0302982		End Cap, Lh		Appelez-nous	-
5	0059768		Channel, Glass (black)		Appelez-nous	-
6	300773K		Trim, Lower Backguard		Appelez-nous	-
7	Y0302291		Control Panel Backguard		Appelez-nous	-
8	0301753		Bracket, Clock Mtg.		Appelez-nous	-
9	Y0300761		Control, Erc		Appelez-nous	-
9	0304554		Control, Electronic Range		Appelez-nous	-
10	301161B		Shield		Appelez-nous	-
11	0302252		Rear Backguard & Cover Plate		Appelez-nous	-
12	Y0301481		Bushing, Clock		Appelez-nous	-
13	Y0301393		Knob, Set Button 1/2`` Diam.		Appelez-nous	-
14	0304124		Support, Bkgd (rh)		Appelez-nous	-
15	Y0304123		Support Backguard Lh		Appelez-nous	-
16	WPY0067945		Lamp, Flourescent   (Replaces: Y0067945)				$ 29.33
17	300725K		Trim Vent, Chrome		Appelez-nous	-
18	Y0071924		Light Socket		Appelez-nous	-
19	0061241		Bracket, Lamp Socket, L.h.		Appelez-nous	-
20	0061242		Bracket, Lamp Socket, R.h.		Appelez-nous	-
21	0071964		Socket, Starter		Appelez-nous	-
22	0071920		Starter, Flourescent		Appelez-nous	-
23	0300778		Kit, Light Switch		Appelez-nous	-
24	Y0300704		Knob, Clock (blk)		Appelez-nous	-
25	Y0071869		Ballast		Appelez-nous	-
