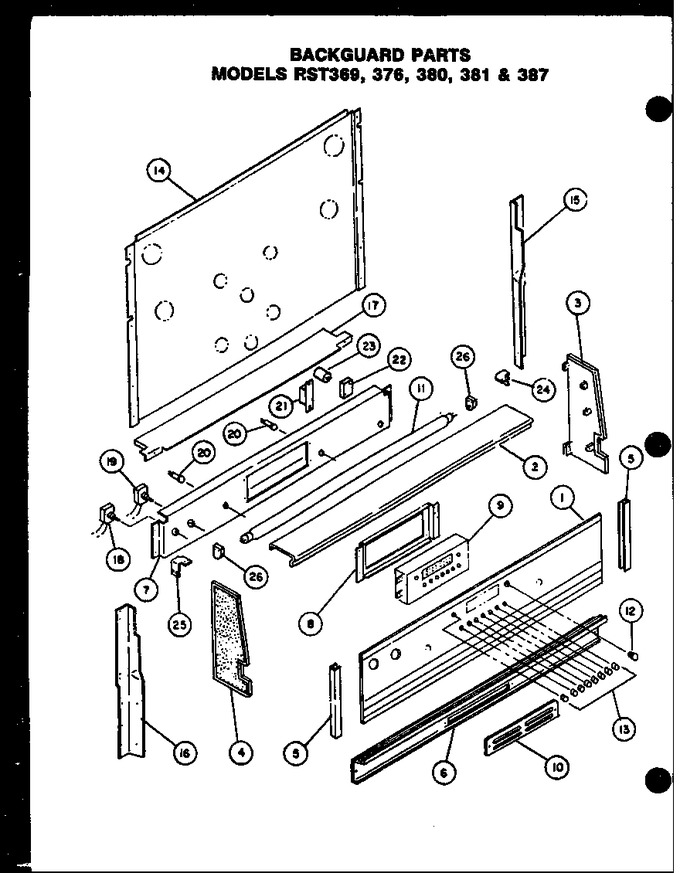

01 - Backguard Parts


02 - Electric Components


03 - Gas Components


04 - Oven Cabinet Assy


05 - Oven Door Parts


06 - Page 1


07 - Sealed Burner Parts


08 - Storage Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0302451		Glass, Backguard, White		Appelez-nous	-
2	Y0302454		Top Trim Backguard, White		Appelez-nous	-
3	Y0302983		End Cap, Rh		Appelez-nous	-
4	Y0302982		End Cap, Lh		Appelez-nous	-
5	Y0303093		Channel, Glass, Grey		Appelez-nous	-
6	Y0302452		Trim, Backguard, White		Appelez-nous	-
7	0302692		Control Panel Backguard		Appelez-nous	-
8	0301753		Bracket, Clock Mtg.		Appelez-nous	-
9	Y0300761		Control, Erc		Appelez-nous	-
10	300725K		Trim Vent, Chrome		Appelez-nous	-
11	WPY0067945		Lamp, Flourescent   (Replaces: Y0067945)				$ 29.33
12	0302459		Knob, Clock, Grey		Appelez-nous	-
13	Y0302460		Kit, Set Button Knob (8 Per)		Appelez-nous	-
14	0058909		Rear Backguard & Cover Plate		Appelez-nous	-
15	Y0058920		Support, Backguard Rt		Appelez-nous	-
16	Y0058919		Support Backguard Lh		Appelez-nous	-
17	301161B		Shield		Appelez-nous	-
18	0302457		Switch, Oven Light, White		Appelez-nous	-
19	0302457		Switch, Oven Light, White		Appelez-nous	-
20	0060747		Indicator Light		Appelez-nous	-
21	Y0071869		Ballast		Appelez-nous	-
22	0071964		Socket, Starter		Appelez-nous	-
23	0071920		Starter, Flourescent		Appelez-nous	-
24	0061242		Bracket, Lamp Socket, R.h.		Appelez-nous	-
25	0061241		Bracket, Lamp Socket, L.h.		Appelez-nous	-
26	Y0071924		Light Socket		Appelez-nous	-
NI	Y0065052		Speednut		Appelez-nous	-
NI	Y0092374		Metal Screw 6x3/8 Phil Pan Hd		Appelez-nous	-
NI	Y0302458		Bezel, Panel Switch, White		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
