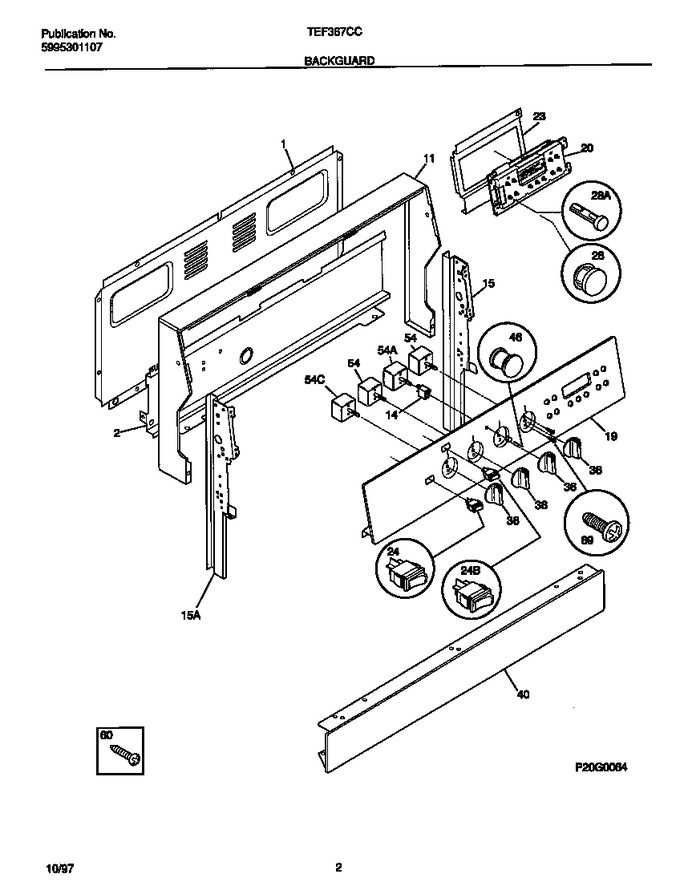

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316061843		Trim-wrapper, Almond		Appelez-nous	-
14	316022503		Light/lamp, Indicator, Yellow, 250 V			Immediately	$ 70.16
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316076511		Panel-control, Metal, Almond		Appelez-nous	-
20	316080100		Clock/timer, Electronic		Appelez-nous	-
23	316079002		Bracket-clock Mtg		Appelez-nous	-
24	316005608		Switch-rocker		Appelez-nous	-
24	316086902		Switch-rocker, Dual Element, Almond		Appelez-nous	-
28	316015105		Push Button, Clock/timer/eoc, Almond		Appelez-nous	-
28	316080600		Shaft-push Button, Clock/timer/eoc, Black				$ 49.41
36	316015208		Knob-control, Almond		Appelez-nous	-
40	316064015		Panel-manifold, Almond		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red, (2)		Appelez-nous	-
54	5303935086		Switch-6`` Element, (2)   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch-8`` Element, (2)   (Replaces: 316021501)			Immediately	$ 51.68
54	5304528972		Switch-infinite, (4)   (Replaces: 316049800)				$ 47.78
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
69	5303292005		Screw-switch Mtg, 8-32 X 5/32		Appelez-nous	-
*05160	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
