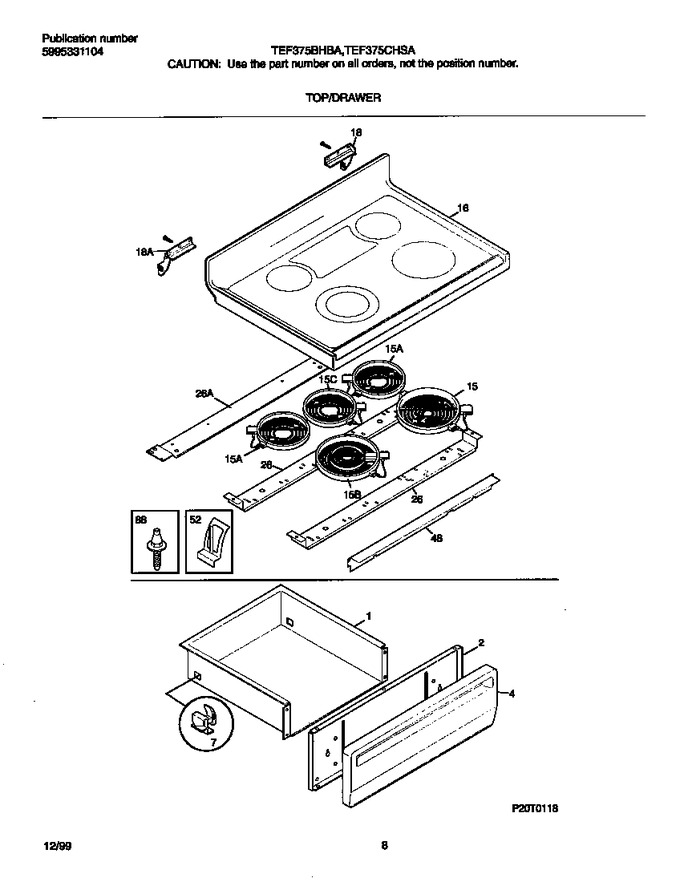

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
9	316073800		Pan-broiler		Appelez-nous	-
15	318198834		Element-surface,radiant , Large/8 Inch ,2100w,limit Sw I   (Replaces: 316010204)				$ 205.36
15	318198817		Element-surface, Radiant, Small/6 Inch ,1200w,limit Sw I   (Replaces: 316010203)			Immediately	$ 192.78
15	389082702		Element-surface, Radiant, Dual, 2100w/1000w, Limit Sw Incl   (Replaces: 316049703)				$ 284.39
15	316098201		Element-warmer,120v/100w		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
26	316099201		Bracket-support, Chassis		Appelez-nous	-
26	316099101		Channel-support, Element, (2)		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316100200		Shield-wire, Main Top		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
88	316099500		Pin,guide ,(2)				$ 6.53
*13939	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*13940	316519700		Screw,cup Pt ,8-18 X 0.375 ,hinge ,ind Lght Brkt,manifol   (Replaces: 316021108)				$ 10.02
*13941	316021109		Screw,semi Gim ,8-18 X 1/2 ,black   (Replaces: 316021110)			Immediately	$ 27.50
*13942	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
*13943	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
*13944	316089600		Spacer-drawer, (2)		Appelez-nous	-
*13945	316112101		Cleaner,cooktop		Appelez-nous	-
*13946	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
10A	3205234		Insert, Broiler Pan		Appelez-nous	-
10B	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
