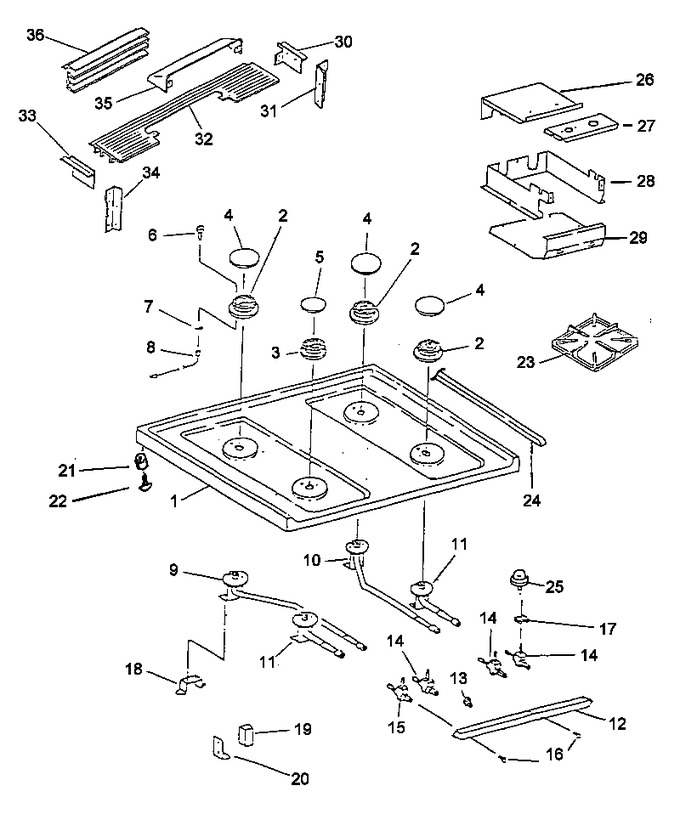

RST388U (BOM: P1141221NWW) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	304360W	Maintop, Sealed Burner (white)	Appelez-nous	-
2	Y0303558	Burner, 4``	Appelez-nous	-
3	Y0305336	Assy Burner 3``	Appelez-nous	-
4	305818T	Burner Cap, Large (lt Gray)	Appelez-nous	-
5	305817T	Burner Cap, Small (lt Gray)	Appelez-nous	-
6	Y0304357	Assy, Electrode	Appelez-nous	-
7	Y0304365	Clip, Electrode	Appelez-nous	-
8	Y0304358	Wire Jumper Assy 20``	Appelez-nous	-
9	Y0304363	Venturi Assy Lr Sealed Burner	Appelez-nous	-
10	Y0304362	Venturi Assy Rr Sealed Burner	Appelez-nous	-
11	Y0304364	Venturi Assy Front Sealed Burn	Appelez-nous	-
12	0303248	Manifold Pipe, Tapped W/bracke	Appelez-nous	-
13	Y0303219	Fitting 1/4 Npt X 3/8 Comp	Appelez-nous	-
14	0304568	Valve 9khi Med Adj Low	Appelez-nous	-
15	Y0304569	Valve 7khi Med Adj Low	Appelez-nous	-
16	Y0061441	Surface Valve Bolt& Gasket	Appelez-nous	-
17	Y0300521	Switch,licon Gas Ignition			$ 57.33
18	Y0304783	Bracket, Ventrui Mtg	Appelez-nous	-
19	Y0305451	Kit,spark Module(service)	Appelez-nous	-
19	Y0302477	Spark Module	Appelez-nous	-
20	0302290	Bracket, Mounting	Appelez-nous	-
20	0300231	Bracket	Appelez-nous	-
21	Y0062445	Spacer, Nylon (.14``)	Appelez-nous	-
22	W11245710	Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: Y0041809)		Immediately	$ 12.65
23	305815T	Grate, Top Burner (lt Gray)	Appelez-nous	-
24	0302980	Trim, Main Top, Lh, Gas	Appelez-nous	-
24	0302981	Trim, Main Top, Rh, Gas	Appelez-nous	-
25	Y0304580	Knob, Top Burner (wht)	Appelez-nous	-
26	Y0303187	Plenum, Top	Appelez-nous	-
27	0303568	Plenum, Top Front	Appelez-nous	-
27	Y0303208	Plenum, Wrapper R.h.	Appelez-nous	-
28	Y0303185	Plenum, Wrapper L.h.	Appelez-nous	-
28	0303210	Wrapper Rh Side	Appelez-nous	-
29	Y0303186	Plenum, Bottom	Appelez-nous	-
NI	8169479	Screw, No.8-18 X 1/2 P Flt Hd (Replaces: Y0041811)			$ 6.26
NI	W11772394	Screw (Replaces: Y0071847)		Immediately	$ 10.94
