RST399UL | TransGlobal : Appliance Model Lookup

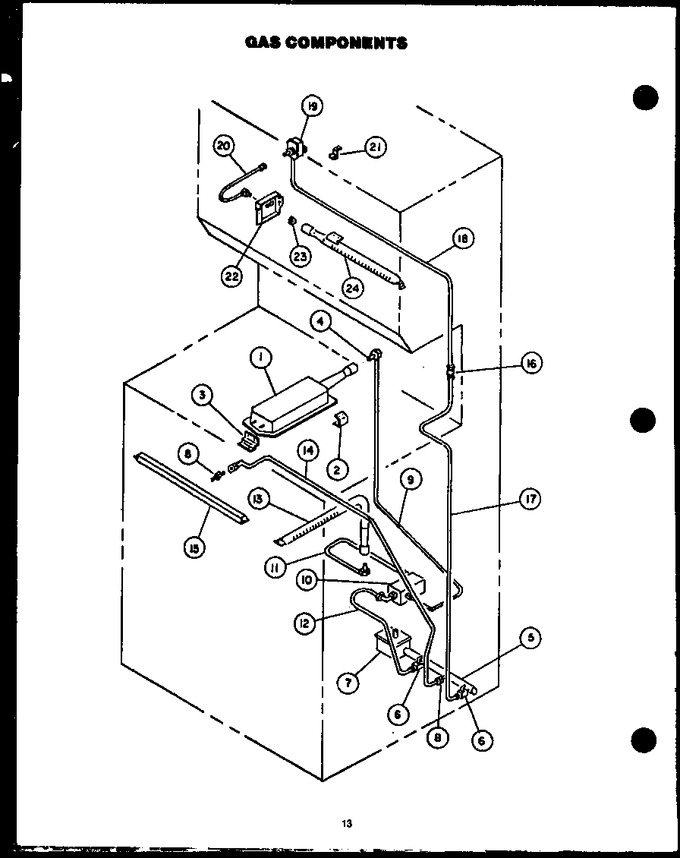

Diagram #	Part Number	Description	Availability	Ships	Price
1	Y0060691	Assy, Br. Burner	Appelez-nous	-
2	0063785	Bracket, Ignitor	Appelez-nous	-
3	Y0060687	Bracket, Mtg. Br. Support	Appelez-nous	-
4	Y0063061	Orifice, No.58 Lp	Appelez-nous	-
4	Y0063060	Orifice Spud, Nat. Gas No.50	Appelez-nous	-
5	0303247	Inlet Pipe	Appelez-nous	-
6	Y0301361	Valve, Shut-off	Appelez-nous	-
7	Y0063684	Regulator-5``/10`` Side Inlet	Appelez-nous	-
8	Y0303219	Fitting 1/4 Npt X 3/8 Comp	Appelez-nous	-
9	Y0300687	Kit, Orifice,tubing,brkt	Appelez-nous	-
10	Y0300664	Valve, Gas	Appelez-nous	-
11	Y0300685	Tubing, Oven Burner	Appelez-nous	-
12	Y0300684	Tubing, Inlet To Gas Valve	Appelez-nous	-
13	Y0063709	Oven Burner	Appelez-nous	-
14	Y0303220	Tubing, Inlet To Manifold	Appelez-nous	-
15	0303248	Manifold Pipe, Tapped W/bracke	Appelez-nous	-
16	Y0304566	Union Straight 3/8 To 3/8cc	Appelez-nous	-
17	0304127	Tube Assy Inlet To Union	Appelez-nous	-
18	0304564	Tube Assy Union Gas Valve	Appelez-nous	-
19	0064685	Valve, Gas	Appelez-nous	-
20	0304563	Tube Assy Gas Valve To Orifice	Appelez-nous	-
21	0071203	Wire Clamp	Appelez-nous	-
22	0064525	Bracket, Orifice Mtg.	Appelez-nous	-
23	Y0097871	Nut, Pal 3/4-16 X 1.062	Appelez-nous	-
24	0072187	Oven Burner, Upper	Appelez-nous	-
NI	0063780	Shield, Ignitor	Appelez-nous	-
NI	Y0068028	Shield, Ignitor	Appelez-nous	-
NI	Y0093538	Sleeve, Fiberglass	Appelez-nous	-
NI	Y0072230	Screw No.6-32 X 3/8	Appelez-nous	-
NI	Y0063757	Bracket, Igniter Mounting	Appelez-nous	-
NI	WP489128	Screw No.8 Stainless Elements (Replaces: Y0041817)			$ 9.79
NI	M0282005	Nut K (Replaces: Y0078790)			$ 7.07
NI	0064396	Mounting Bracket, Ignitor	Appelez-nous	-
NI	Y0092580	3/8`` Compression Nut	Appelez-nous	-
NI	Y0092579	3/8`` Compression Sleeve	Appelez-nous	-
NI	Y0097871	Nut, Pal 3/4-16 X 1.062	Appelez-nous	-
