SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram

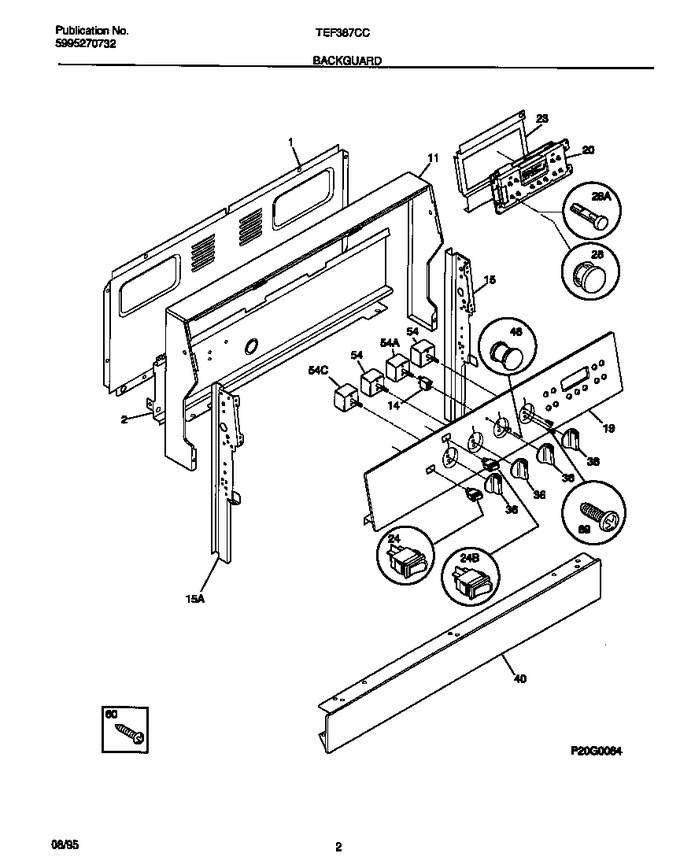

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316061843		Trim-wrapper, Almond		Appelez-nous	-
14	316022503		Light-lamp, Indicator, 250 V			Immediately	$ 70.16
15	316023110		Support-backguard, Rh		Appelez-nous	-
19	316076515		Panel-control, Metal, Almond		Appelez-nous	-
20	316064503		Clock/timer, Electronic		Appelez-nous	-
23	316079003		Bracket-clock Mtg		Appelez-nous	-
24	316005608		Switch-rocker, Almond, (2)		Appelez-nous	-
28	316015105		Button-clock, Almond		Appelez-nous	-
36	316015208		Knob-control, Almond		Appelez-nous	-
40	316064015		Panel, Manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
69	5303292005		Screw-switch Mtg, 8-32 X 3/16, Sw To Cntl Pnl, (8)		Appelez-nous	-
*66080	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
15A	316023111		Support-backguard, Lh		Appelez-nous	-
24B	316076302		Switch-rocker, Almond, Dual Element		Appelez-nous	-
28A	316036900		Shaft-push Button, Clock/timer/eoc, (11)				$ 11.24
54A	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
54C	5304528972		Switch-6/8   (Replaces: 316049800)				$ 47.78

    View Diagram in Separate Window       Print Part List
