SELECT A DIAGRAM

01 - Control Panel


02 - Electrical Components


03 - Gas Components


04 - Lower Oven Door Parts


05 - Main Top And Oven Assy


06 - Oven Cabinet Assy


07 - Sealed Burner


08 - Storage Drawer


09 - Upper Oven


10 - Upper Oven Door

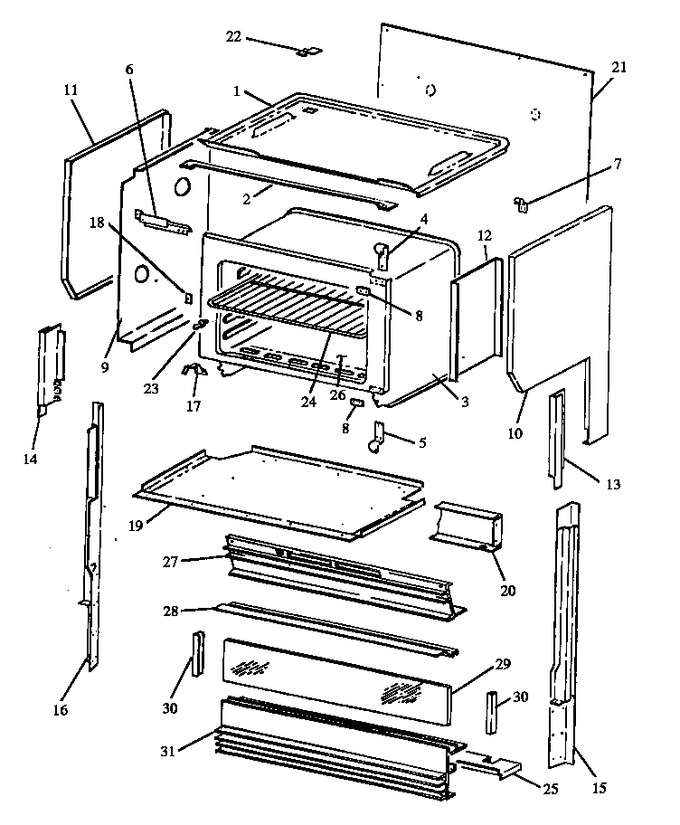

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0305009		Jacket, Top		Appelez-nous	-
2	Y0094406		Flue Trim		Appelez-nous	-
3	Y00000000		See Note Main Body -- (not Field Replaceable)		Appelez-nous	-
4	Y0094357		Hinge, Top		Appelez-nous	-
5	Y0094356		Hinge, Bottom		Appelez-nous	-
6	0304575		Support Filler		Appelez-nous	-
7	Y0016319		Clip Spring Thermo Bulb		Appelez-nous	-
8	0093625		Cover Plate Front Frame		Appelez-nous	-
9	Y0304556		Insulation Retainer Lh		Appelez-nous	-
10	303645W		End Panel Rh		Appelez-nous	-
10	303645L		End Panel Rh		Appelez-nous	-
11	303646L		End Panel Lh		Appelez-nous	-
11	303646W		End Panel Lh		Appelez-nous	-
12	Y0062256		Retainer, Insulation		Appelez-nous	-
13	Y0303693		Trim Support Lower Rh		Appelez-nous	-
14	Y0303694		Trim Support Lower Lh		Appelez-nous	-
15	Y0300414		Support Right		Appelez-nous	-
16	0300413		Support Left		Appelez-nous	-
17	0071092		Door Guide		Appelez-nous	-
18	0075826		Plate, Door Strike		Appelez-nous	-
19	0071317		Jacket Bottom		Appelez-nous	-
20	0304537		Panel Surface Light		Appelez-nous	-
21	Y0305010		Plate, Rear Cover		Appelez-nous	-
22	Y0073060		Receptacle Cover		Appelez-nous	-
23	Y0078034		Strike, Door, Upper Oven		Appelez-nous	-
24	304530J		Rack, Oven 19 7/8x 1117/32``		Appelez-nous	-
25	0062423		Shield, Heat		Appelez-nous	-
26	78002CG		Oven Bottom		Appelez-nous	-
27	Y0304384		Decorative Panel		Appelez-nous	-
28	0062230		Trim, Rear		Appelez-nous	-
29	0303680		Glass Splashplate		Appelez-nous	-
30	Y0303647		Trim Glass Channel		Appelez-nous	-
31	304037W		Lower Trim Splashplate		Appelez-nous	-
31	304037L		Lower Trim Splashplate		Appelez-nous	-
NI	Y0305028		Trim Side Shield Lh		Appelez-nous	-
NI	Y0305029		Trim Side Shield Rh		Appelez-nous	-
NI	0094286		Housing, Oven Light		Appelez-nous	-
NI	0093681		Washer, Finishing		Appelez-nous	-
NI	0097959		Washer Finishing		Appelez-nous	-
NI	0304550		Support Brkt Control Panel		Appelez-nous	-
NI	Y0079006		Screw-10x1/2 Phl Tr Hd		Appelez-nous	-
NI	Y0041966		Insulation,wrapper		Appelez-nous	-
NI	Y0097953		Washer, Finishing		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
