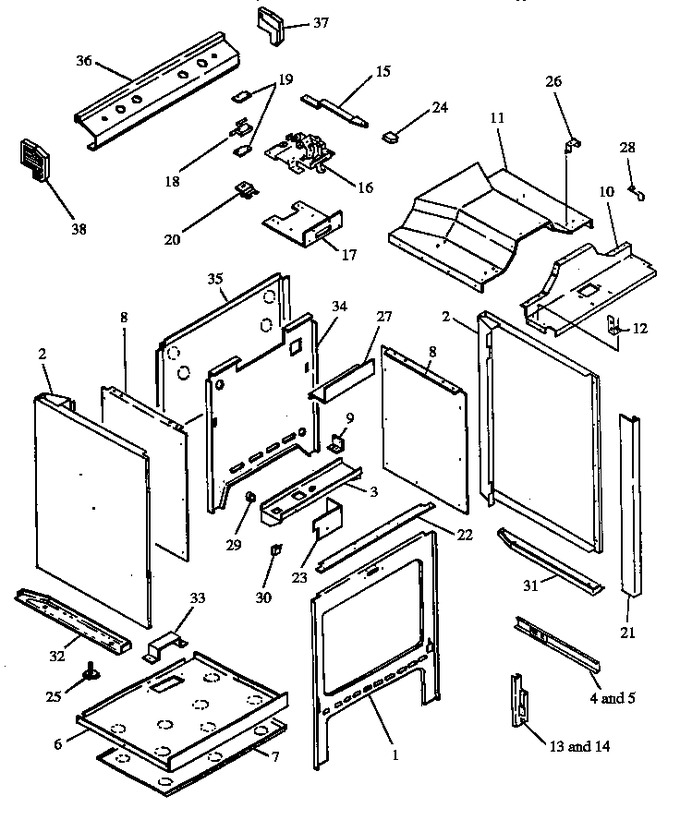

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y00000000 | See Note Front Frame -- (not Field Replaceable |
|
- | |||||
| 2 | 306081L | Panel, Side (alm) |
|
- | |||||
| 2 | 306081W | Panel, Side (wht) |
|
- | |||||
| 3 | 0058890 | Shelf, Gas Valve |
|
- | |||||
| 3 | 0307065 | Shelf, Gas Valve |
|
- | |||||
| 4 | 0300475 | Track, Storage Drawer-r.h. |
|
- | |||||
| 4 | 0306403 | Track, Storage Dwr Rh |
|
- | |||||
| 5 | Y0306402 | Track, Storage Dwr Lh |
|
- | |||||
| 5 | Y0300474 | Track, Storage Drawer-l.h. |
|
- | |||||
| 6 | Y0058896 | Insul, Ret.-bottom |
|
- | |||||
| 7 | Y0063706 | Shield, Heat |
|
- | |||||
| 8 | 0304282 | Retainer, Insulation (side) |
|
- | |||||
| 8 | Y0303572 | Side Insulation Retainer |
|
- | |||||
| 9 | 0053182 | Bracket, Gas Valve |
|
- | |||||
| 10 | Y0303571 | Retainer Insulation |
|
- | |||||
| 11 | Y0306083 | Retainer, Top Insulation |
|
- | |||||
| 11 | Y0303570 | Insulation Retainer Top X |
|
- | |||||
| 11 | Y0308921 | Retainer, Top Insul. |
|
- | |||||
| 12 | Y0065458 | Bracket, Spark Module Mtg. |
|
- | |||||
| 12 | 0304971 | Bracket, Spark Module |
|
- | |||||
| 13 | Y0066954 | Kit, Door Hinge (rh-ss) |
|
- | |||||
| 14 | Y0066952 | Kit, Door Hinge (lh-hs) |
|
- | |||||
| 15 | 0303040 | Arm, Door Latch |
|
- | |||||
| 16 | Y0063733 | Latch Assembly |
|
- | |||||
| 17 | Y0058918 | Bracket, Latch Mtg. |
|
- | |||||
| 18 | Y0304579 | Latch Switch Hi Temp |
|
- | |||||
| 19 | Y0091523 | Insulation, Esm |
|
- | |||||
| 20 | Y0302316 | Bracket, Switch |
|
- | |||||
| 21 | Y0301639 | Trim, Side Panel, Lh |
|
- | |||||
| 22 | 302380B | Filler, Front Frame |
|
- | |||||
| 23 | Y0058916 | Cover, Electrical |
|
- | |||||
| 24 | 0302300 | Knob, Latch Handle (blk) |
|
- | |||||
| 25 | Y0307594 | Leg, Leveling |
|
- | |||||
| 26 | Y0304783 | Bracket, Ventrui Mtg |
|
- | |||||
| 26 | 0303189 | Bracket Venturi Mounting |
|
- | |||||
| 27 | Y0306827 | Cover, Electrical |
|
- | |||||
| 27 | Y0058834 | Cover, Elec. Wires |
|
- | |||||
| 28 | Y0068513 | Clamp, Wire-insulate |
|
- | |||||
| 29 | Y0042659 | Snap Bushing |
|
- | |||||
| 30 | Y0091587 | Cable, Clip Esm |
|
- | |||||
| 31 | Y0306118 | Assy Leg Brace/level Lh |
|
- | |||||
| 32 | Y0306119 | Brace, Leveling Leg (lt) |
|
- | |||||
| 33 | Y0302498 | Cover, Ig/bake Burner |
|
- | |||||
| 34 | 0306515 | Retainer, Rear Insul |
|
- | |||||
| 35 | 0302252 | Rear Backguard & Cover Plate |
|
- | |||||
| 36 | 0303240 | Panel, Control |
|
- | |||||
| 37 | 0302985 | End Cap, Control Panel, Rh |
|
- | |||||
| 38 | 0302984 | End Cap, Control Panel, Lh |
|
- | |||||
| NI | Y0092365 | Screw 4-40x1 |
|
- | |||||
| NI | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: Y0059445) |
|
Immediately | $ 12.65 | ||||
| NI | Y0078780 | Screw Latch Arm Mounting |
|
- | |||||
| NI | Y0041769 | Screw 6 32x5/16 Ph Fh |
|
- | |||||
| NI | Y0065664 | Screw, Tt 23 4-40 X 5/8 |
|
- | |||||
| NI | Y0300830 | Screw No.10-32 X .375 |
|
- | |||||
| NI | 0062840 | Cover Plate Latch |
|
- | |||||
| NI | Y0301552 | Anti-tip Pack |
|
- |
