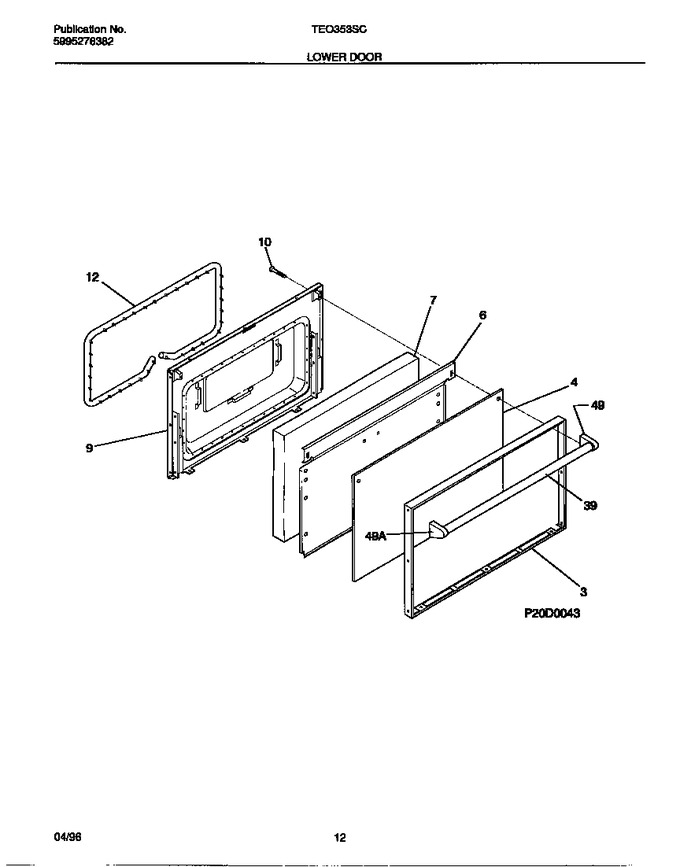

06 - Top/drawer


07 - Lower Door


08 - Upper Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim-oven Door		Appelez-nous	-
4	5303051153		Glass-oven Door, Solid Black, Outer		Appelez-nous	-
6	5303209317		Shield-insulation, Black		Appelez-nous	-
7	316439802		Insulation, Oven Door   (Replaces: 316076400)			Immediately	$ 192.78
9	316066602		Liner-oven Door		Appelez-nous	-
10	316001001		Screw-handle Mtg, Wafer Head, 10-24 X 3.375		Appelez-nous	-
12	5303131601		Seal-oven Door				$ 374.63
39	316008300		Handle-door, Black, Oven		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
*33416	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*33417	316065300		Plate Warning/caution		Appelez-nous	-
*33418	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*33419	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
