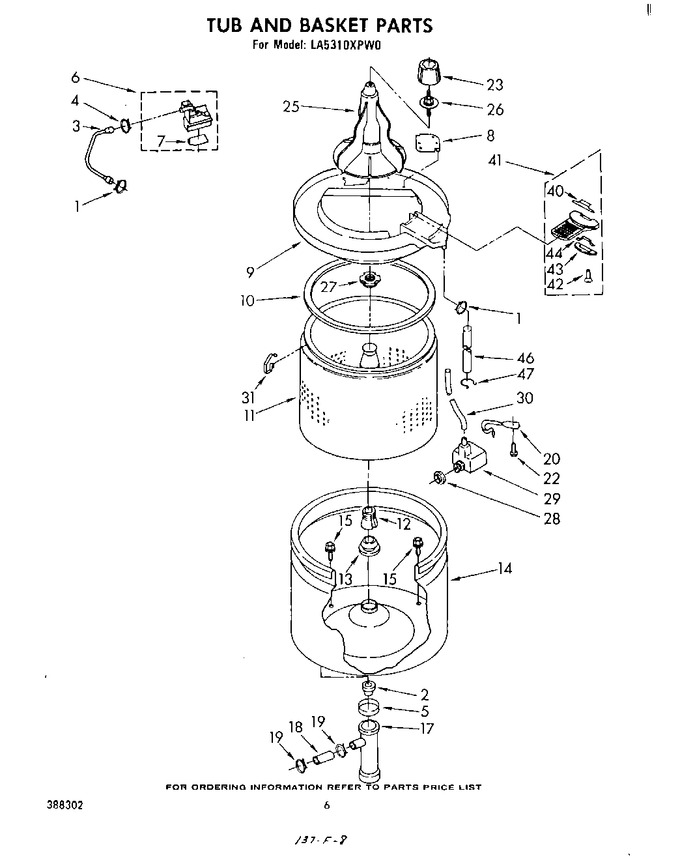

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP596669		Clamp, Hose   (Replaces: 272846)			Immediately	$ 7.56
2	93553		Hose, Tub Outlet		Appelez-nous	-
3	356349		Hose, Water Inlet		Appelez-nous	-
4	WP596669		Clamp, Hose   (Replaces: 272847)			Immediately	$ 7.56
5	9421321		Clip, Hose		Appelez-nous	-
6	366072		Inlet, Water		Appelez-nous	-
7	355584		Flapper		Appelez-nous	-
8	355852		Plate, Snubber		Appelez-nous	-
9	381978		Ring & Filter, Tub (includes Illus. 8 & 41)		Appelez-nous	-
10	383553		Seal, Tub Ring		Appelez-nous	-
11	383960		Basket		Appelez-nous	-
12	WP389140		Block, Drive   (Replaces: 357782)			Immediately	$ 24.74
13	W10814296		Gasket, Centerpost   (Replaces: 96690)			Immediately	$ 8.26
14	384123		Tub		Appelez-nous	-
15	WP358237		Screw & Washer, Tub (4)   (Replaces: 370571)			Immediately	$ 7.97
17	84091		Manifold		Appelez-nous	-
18	DE81-06162A		Hose   (Replaces: 92231)				$ 78.75
19	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
20	358339		Bracket, Hose		Appelez-nous	-
22	WP273556		Screw, 10-16 X 5/8   (Replaces: 357640)			Immediately	$ 7.04
23	358431		Cap, Agitator		Appelez-nous	-
25	363633		Agitator				$ 68.97
26	358440		Stud & Seal		Appelez-nous	-
27	WP21366		Nut, Spanner   (Replaces: 21366)			Immediately	$ 8.00
28	351830		Seal				$ 5.84
29	360804		Air Dome Assembly		Appelez-nous	-
30	WP353244		Hose, Pressure Switch   (Replaces: 353162)			Immediately	$ 53.94
31	359763		Clip, Tub Ring (4)		Appelez-nous	-
40	357249		Latch		Appelez-nous	-
41	359785		Filter		Appelez-nous	-
42	176360		Screw (2)		Appelez-nous	-
43	357250		Retainer		Appelez-nous	-
44	94403		Spring		Appelez-nous	-
46	357346		Hose, Pump To Filter		Appelez-nous	-
47	387551		Clip, Hose To Cabinet		Appelez-nous	-
