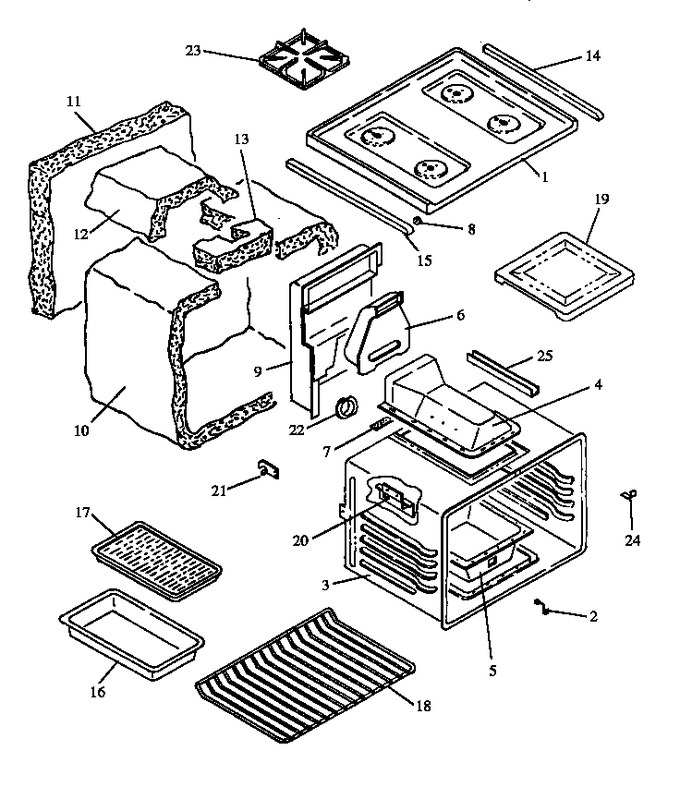

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 308965W | Maintop, Sealed Burner (white) |
|
- | |||||
| 2 | Y0091546 | Support |
|
- | |||||
| 3 | 301965E | Kit,oven Cavity |
|
- | |||||
| 4 | 0306651 | Weldm`t, Broil Chamber |
|
- | |||||
| 4 | Y0062892 | Chamber, Broiler |
|
- | |||||
| 5 | Y0063802 | Burner Box, Lower |
|
- | |||||
| 6 | 0303463 | Assy, Inner Flue |
|
- | |||||
| 6 | 0062770 | Flue |
|
- | |||||
| 7 | 0062754 | Gasket, Oven Back |
|
- | |||||
| 8 | Y0062445 | Spacer, Nylon (.14``) |
|
- | |||||
| 9 | 304578B | Dilution Flue |
|
- | |||||
| 9 | 0063552 | Flue, Dilution |
|
- | |||||
| 10 | Y0062947 | Sub 41966, Insulation |
|
- | |||||
| 11 | Y0062945 | Sub 41966, Insulation |
|
- | |||||
| 12 | Y0062946 | Sub 41966, Insulation |
|
- | |||||
| 13 | Y0062944 | Sub 41966, Insulation |
|
- | |||||
| 14 | 0302981 | Trim, Main Top, Rh, Gas |
|
- | |||||
| 15 | 0302980 | Trim, Main Top, Lh, Gas |
|
- | |||||
| 16 | 4396923 | Pan, Broiler (Replaces: 11161CG) |
|
Immediately | $ 52.04 | ||||
| 17 | 4396923 | Grid, Broiler (cg) (Replaces: 304451E) |
|
Immediately | $ 52.04 | ||||
| 18 | WP314763J | Rack,oven (Replaces: Y067810K) |
|
$ 70.11 | |||||
| 19 | 58625CG | Oven Bottom |
|
- | |||||
| 20 | 0062792 | Shield, Thermostat Bulb |
|
- | |||||
| 21 | Y0058852 | Bracket, Oven Cavity |
|
- | |||||
| 22 | Y0303111 | Bracket, Broil Orifice |
|
- | |||||
| 23 | 305815B | Grate, Top Burner (blk) |
|
- | |||||
| 24 | 0300278 | Chip Cover |
|
- | |||||
| 25 | Y0304019 | Channel, Broil Burner |
|
- | |||||
| 25 | Y0063775 | Channel, Br. Brnr. |
|
- | |||||
| NI | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: Y0059445) |
|
Immediately | $ 12.65 | ||||
| NI | W11245710 | Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: Y0041809) |
|
Immediately | $ 12.65 | ||||
| NI | Y0040848 | Probe Recept. Cover Stainless |
|
- |
