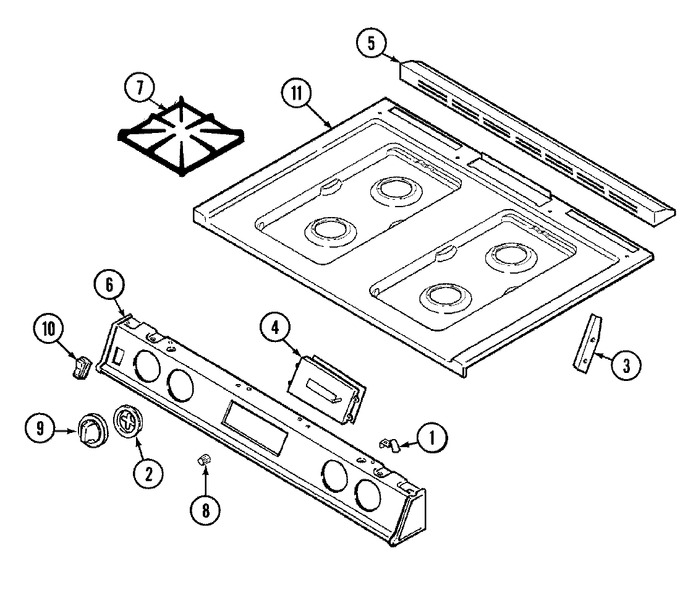

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3801F318-51 | Bracket, Top | 10 |
|
- | ||||
| 2 | W10856847 | Bezel, Knob (wht) (Replaces: 7740P059-60) | 10 |
|
$ 46.82 | ||||
| 3 | 3807F431-45 | Support, Main Top | 10 |
|
- | ||||
| 4 | 7601P277-60 | Clock (wht) | 10 |
|
- | ||||
| 4 | 74003191 | Bracket, Clock | 10 |
|
- | ||||
| 4 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | 74002298 | Clock (wht) | 16 |
|
- | ||||
| 4 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 4 | 74002888 | Clock (wht) | 32 |
|
- | ||||
| 5 | 4825D001-59 | Cover, Vent Trim | 10 |
|
- | ||||
| 5 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 7201P061-60 | Gasket | 10 |
|
$ 4.83 | ||||
| 5 | 3601F221-45 | Baffle, Vent Cover | 10 |
|
$ 28.30 | ||||
| 6 | 74003914 | Panel, Manifold (wht)----na | 22 |
|
- | ||||
| 6 | 74002588 | Cover, Manifold (rear) | 21 |
|
- | ||||
| 6 | 7712P197-60 | Panel, Manifold (wht) | 10 |
|
- | ||||
| 6 | 74001542 | Cover, Manifold (rear) | 10 |
|
- | ||||
| 6 | 7112P102-60 | Clip, Speed | 10 |
|
- | ||||
| 7 | 74001061 | Grate (gry) | 28 |
|
- | ||||
| 7 | 74001061 | Grate (gry) | 39 |
|
- | ||||
| 7 | 74001655 | Grate (gry) | 36 |
|
- | ||||
| 7 | 2003W027-26 | Grate (gry) | 10 |
|
- | ||||
| 8 | WP7711P492-60 | Knob, Clock (wht) (Replaces: 7711P432-60) | 10 |
|
$ 12.13 | ||||
| 8 | W10124350 | Not Required Part Or See Note Not Required (6498vvv) | 16 |
|
- | ||||
| 9 | WP74003769 | Knob, Valve (wht) (Replaces: 7733P083-60) | 10 |
|
$ 15.24 | ||||
| 10 | 7403P200-60 | Switch, Rocker (wht) | 10 |
|
- | ||||
| 11 | 2001W089-81 | Top, Main (wht) | 10 |
|
- | ||||
| 12 | 5125A312-60 | Harness, Loose/burner Box | 10 |
|
- | ||||
| 12 | 5170P228-60 | Harness, Sensor & Lock | 10 |
|
- | ||||
| 12 | 5195D105-60 | Harness, Burner Box | 10 |
|
- | ||||
| 12 | 74001575 | Harness, Control/relay | 10 |
|
- | ||||
| 13 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- | ||||
| 13 | 16007437 | Manual, Use & Care | 16 |
|
- | ||||
| 13 | 8113P066-60 | Manual, Use & Care | 10 |
|
- | ||||
| 13 | 16008701 | Manual, Use & Care (frch) | 10 |
|
- |
