SELECT A DIAGRAM
New Model Search:

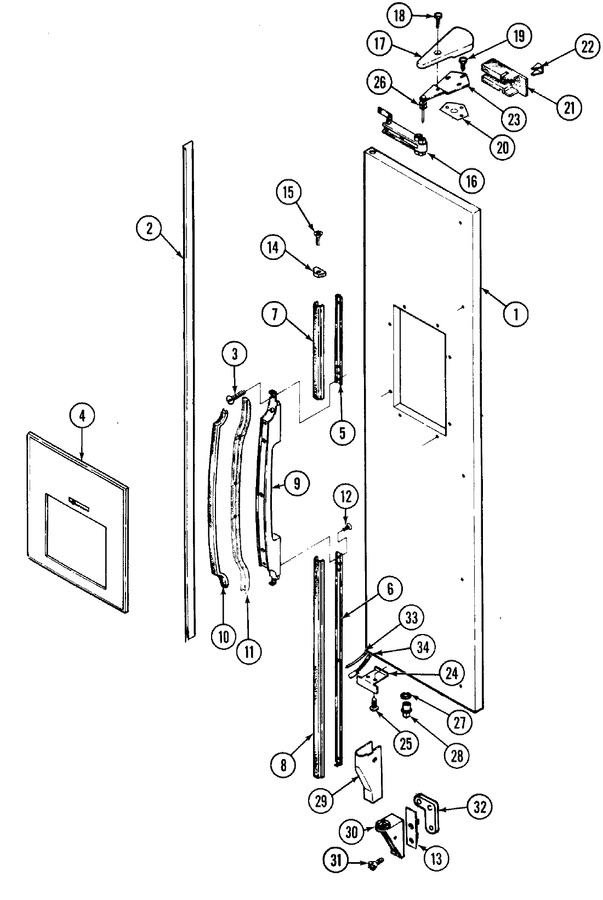

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72341-102-AM | Panel, Frz. Door (alm) | 10 |
|
- | ||||
| 1 | 495034-900 | Plug Button, Door | 10 |
|
- | ||||
| 1 | 72341-104-AM | Panel, Frz. Door (alm) | 11 |
|
- | ||||
| 2 | 69265-4 | Trim, Door | 10 |
|
- | ||||
| 3 | W10856122 | Screw (Replaces: 65275-80) | 10 |
|
$ 6.98 | ||||
| 4 | 69907-8 | Escutcheon Assy | 10 |
|
- | ||||
| 5 | 67926-1 | Shim, Trim Lock (upr) | 10 |
|
- | ||||
| 6 | 67926-2 | Shim, Trim Lock (lwr) | 10 |
|
- | ||||
| 7 | 67932-12 | Trim, Extension (upr - Alm) | 10 |
|
- | ||||
| 8 | 67932-13 | Trim, Extension (lwr - Alm) | 10 |
|
- | ||||
| 9 | 67922-1 | Handle | 10 |
|
- | ||||
| 10 | 67924-3 | Insert, Handle (alm) | 10 |
|
- | ||||
| 11 | 67920-1 | Frame,handle | 10 |
|
- | ||||
| 12 | 65275-44 | Screw | 10 |
|
- | ||||
| 13 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 14 | 67928-2 | Endcap, Handle | 10 |
|
- | ||||
| 15 | 414004-35 | Screw | 10 |
|
- | ||||
| 16 | 414004-1 | Screw | 10 |
|
- | ||||
| 16 | 69258-1 | Closer, Door | 10 |
|
- | ||||
| 17 | 69518-3 | Cover, Upper Hinge (alm) | 10 |
|
- | ||||
| 18 | 408062-1 | Screw | 10 |
|
- | ||||
| 19 | WP3-24838-048 | Screw (Replaces: 65275-52) | 10 |
|
$ 7.00 | ||||
| 20 | 65031-1 | Shim, Upper Hinge | 10 |
|
- | ||||
| 21 | 70049-1 | Insulation Door | 10 |
|
- | ||||
| 21 | 52613-1 | Insulation, Closer | 10 |
|
- | ||||
| 22 | 69261-1 | Bracket, Closer | 10 |
|
- | ||||
| 23 | 53709-22 | Hinge, Upper | 10 |
|
- | ||||
| 24 | 69256-2 | Stop, Door | 10 |
|
- | ||||
| 25 | 65275-48 | Screw | 10 |
|
- | ||||
| 26 | WP52185-1 | Washer (Replaces: 52185-1) | 10 |
|
Immediately | $ 9.47 | |||
| 27 | 67483-3 | Washer, Door Spacer | 10 |
|
Immediately | $ 45.86 | |||
| 28 | 70060-1 | Pin, Hinge | 10 |
|
- | ||||
| 29 | 65275-56 | Screw | 10 |
|
- | ||||
| 29 | 68978-3 | Cover, Lower Hinge (alm) | 10 |
|
- | ||||
| 30 | 69516-3 | Hinge, Lower (zinc) | 10 |
|
- | ||||
| 31 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 32 | 65275-59 | Screw | 10 |
|
- | ||||
| 32 | 67874-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 33 | WPW10426709 | Tubing, Coil To Fountain (Replaces: 67187-29) | 11 |
|
$ 126.83 | ||||
| 33 | WPW10426709 | Tubing (5/16``) (Replaces: 67187-23) | 10 |
|
$ 126.83 | ||||
| 34 | 69804-1 | Wire Harness, Door | 10 |
|
- | ||||
| 34 | 69540-1 | Insulation, Ice Door | 10 |
|
- |
