SELECT A DIAGRAM

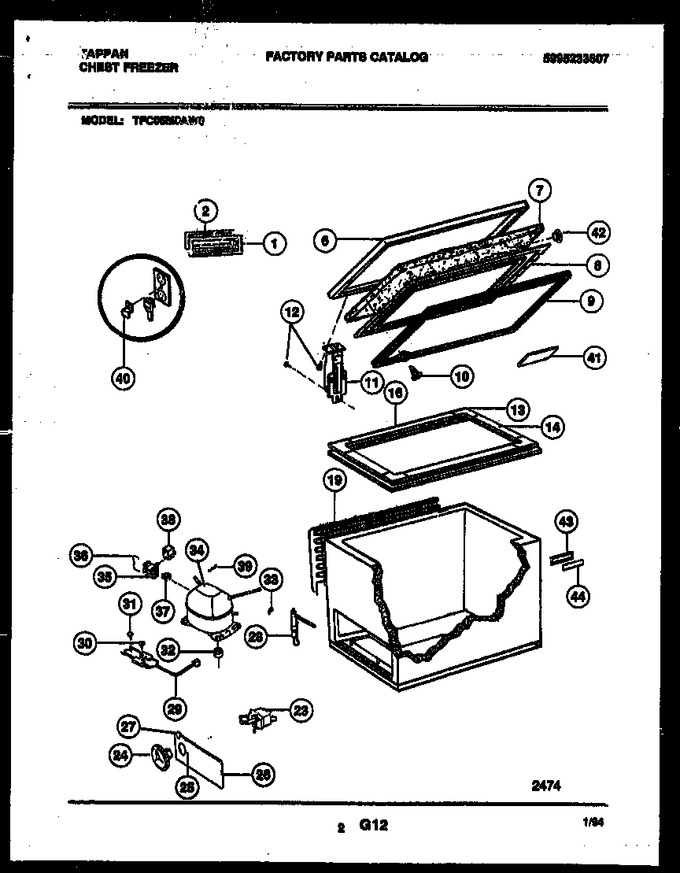

02 - Chest Freezer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216140200		Handle		Appelez-nous	-
2	08009392		Fastener		Appelez-nous	-
6	216106004		Lid Exterior (white)		Appelez-nous	-
7	5303207270		Insulation		Appelez-nous	-
8	216062702		Panel-inner		Appelez-nous	-
9	216480801		Gasket-white   (Replaces: 216078400)				$ 181.83
10	5303212828		Clip Panel (21)				$ 16.63
11	216119101		Hinge		Appelez-nous	-
12	5309950602		Screw Hinge				$ 5.30
13	216105500		Breaker-corner (white)				$ 46.83
14	216105600		Breaker-side (white)		Appelez-nous	-
16	216117603		Breaker-front & Rear (white)		Appelez-nous	-
19	5300120779		Condenser (not Original Equipment-service Replacement On		Appelez-nous	-
23	5304496560		Control Temp   (Replaces: 5303212610)				$ 49.62
24	216034505		Knob-control		Appelez-nous	-
25	5303208663		Plug-indicator		Appelez-nous	-
26	216108300		Panel-access		Appelez-nous	-
27	5309950877		Retainer (4)		Appelez-nous	-
28	5303305677		Drier-filter   (Replaces: 5308000027)			Immediately	$ 31.67
29	216138300		Harness		Appelez-nous	-
30	216022800		Screw		Appelez-nous	-
31	216036600		Screw-ground		Appelez-nous	-
32	215175000		Grommet		Appelez-nous	-
33	5303212614		Clip Harness				$ 2.88
34	216138400		Compressor		Appelez-nous	-
35	216008900		Relay		Appelez-nous	-
36	216147800		Clamp		Appelez-nous	-
37	5303206885		Overload				$ 119.23
38	3017761		Run Capacitor		Appelez-nous	-
39	216056400		Clip		Appelez-nous	-
40	08016777		Clamp-power Cord (not Original Equipment-customer Purcha		Appelez-nous	-
41	5303296329		Label-food Storage		Appelez-nous	-
42	216141101		Plug-hole Lid				$ 2.57
43	08037409		Frame		Appelez-nous	-
44	216203600		Nameplate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
