SELECT A DIAGRAM
01 - Cover
02 - Door

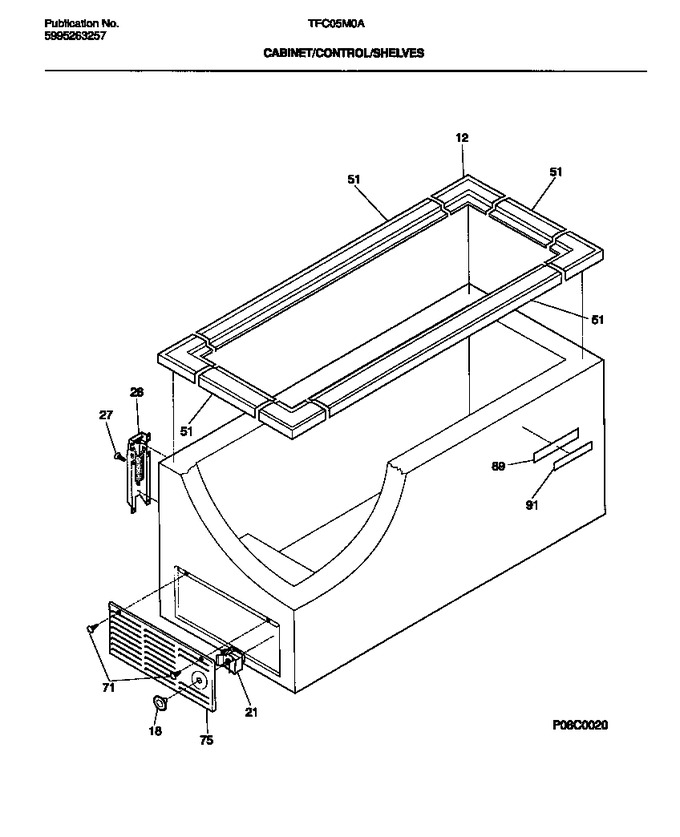

03 - Cabinet, Control, Shelves
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 216105500 | Breaker, White, Corners |
|
$ 46.83 | |||||
| 18 | 216034505 | Knob, Control, White |
|
- | |||||
| 21 | 216356800 | Control, Temperature |
|
- | |||||
| 27 | 5309950602 | Screw Hinge |
|
$ 5.30 | |||||
| 51 | 216117500 | Breaker, Hinge/side |
|
- | |||||
| 71 | 5303302714 | Screw, 8, 18 X 3/4, (2) |
|
- | |||||
| 75 | 216329402 | Panel-access,white |
|
- | |||||
| 89 | 08037409 | Bezel Nameplate |
|
- | |||||
| 91 | 216203600 | Insert-bezel |
|
- | |||||
| *97961 | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 |
