SELECT A DIAGRAM
02 - Door

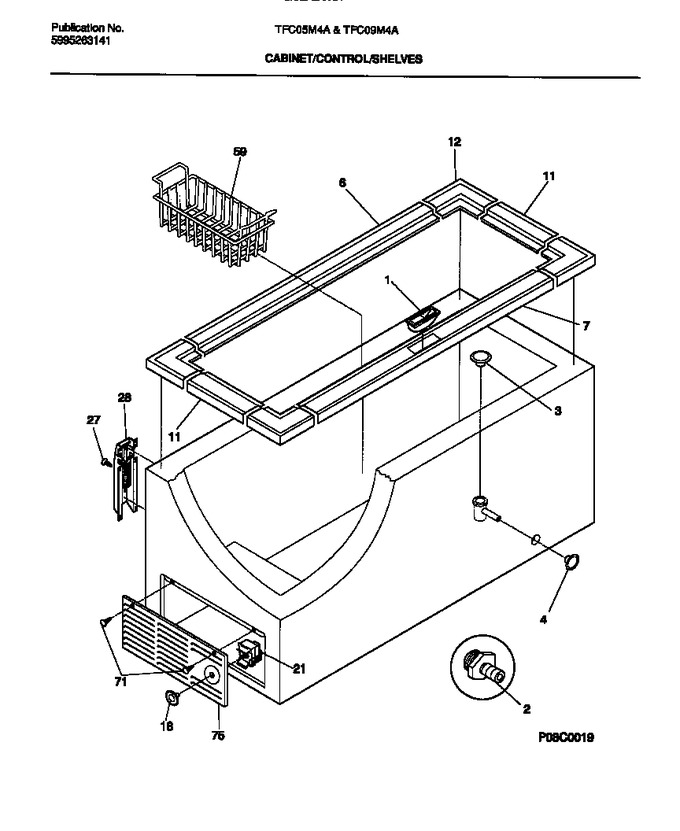

03 - Cabinet, Control, Shelves
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303925315 | Condenser |
|
- | |||||
| 1 | 216117703 | Catch-lock, Gray |
|
- | |||||
| 2 | 216269500 | Adapter, Drain |
|
$ 14.81 | |||||
| 3 | 5306593887 | Plug-drain, Gray |
|
- | |||||
| 4 | 5303305677 | Drier, Filter (Replaces: 216099900) |
|
Immediately | $ 31.67 | ||||
| 6 | 216105703 | Breaker-hinge Side, Gray |
|
- | |||||
| 7 | 216117603 | Breaker-lock Side, Gray |
|
- | |||||
| 11 | 216117503 | Breaker-end, Gray |
|
- | |||||
| 12 | 216105503 | Breaker-corners, Gray |
|
- | |||||
| 18 | 216034505 | Knob, Control, White |
|
- | |||||
| 21 | 216356800 | Control, Temperature |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 28 | 216119101 | Hinge Assy |
|
- | |||||
| 59 | 216848200 | Basket (Replaces: 216078600) |
|
$ 53.21 | |||||
| 71 | 5303302714 | Screw, 8, 18 X 3/4, (2) |
|
- | |||||
| 75 | 216329402 | Panel-access,white |
|
- | |||||
| *14920 | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 |
