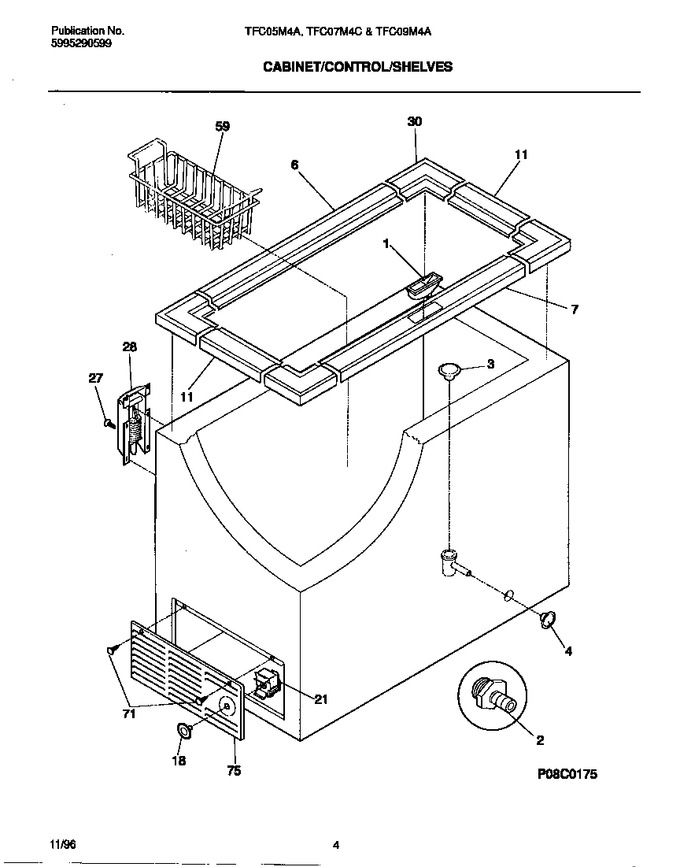

03 - Cabinet/control/shelves


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216117703		Catch-lock, Gray		Appelez-nous	-
2	216269500		Adapter, Drain				$ 14.81
3	216297600		Plug-drain		Appelez-nous	-
4	216073900		Plug, Drain		Appelez-nous	-
6	216105703		Breaker-hinge Side, Gray		Appelez-nous	-
7	216105803		Breaker-lock Side, Grey		Appelez-nous	-
11	216105603		Breaker-ends, Grey		Appelez-nous	-
18	216034505		Knob, Control, White		Appelez-nous	-
21	216424300		Control-temperature		Appelez-nous	-
27	216337700		Screw Hwh 20-24 X .500 Swage, Swage, Hwh 20-24 X .500		Appelez-nous	-
28	216478800		Hinge Assy		Appelez-nous	-
30	216105503		Breaker-corners, Gray		Appelez-nous	-
59	216848200		Basket   (Replaces: 216078600)				$ 53.21
71	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
75	216329402		Panel-access,white		Appelez-nous	-
*81961	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
