SELECT A DIAGRAM

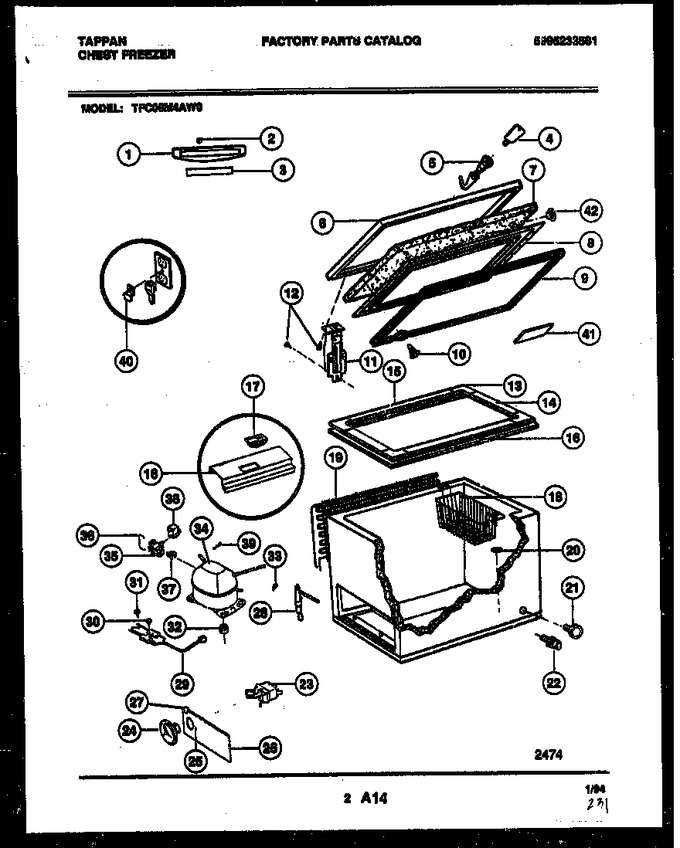

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5309948646 | Handle |
|
- | |||||
| 2 | 5309948647 | Fastener |
|
- | |||||
| 3 | 216151000 | Insert-handle |
|
- | |||||
| 4 | 297147700 | Key (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 5 | 5303925107 | Lock-complete |
|
- | |||||
| 6 | 216117900 | Lid Exterior (white) |
|
- | |||||
| 7 | 5303207270 | Insulation |
|
- | |||||
| 8 | 216063000 | Panel-inner |
|
- | |||||
| 9 | 3018999 | Gasket-gray |
|
- | |||||
| 10 | 5303212828 | Clip Panel (21) |
|
$ 16.63 | |||||
| 11 | 216119201 | Hinge |
|
- | |||||
| 12 | 5309950602 | Screw Hinge |
|
$ 5.30 | |||||
| 13 | 216105503 | Breaker-corner |
|
- | |||||
| 14 | 216105603 | Breaker-side |
|
- | |||||
| 15 | 216117503 | Breaker-rear |
|
- | |||||
| 16 | 216117603 | Breaker-front |
|
- | |||||
| 17 | 216117703 | Catch-lock |
|
- | |||||
| 18 | 216848200 | Basket-white (Replaces: 216078600) |
|
$ 53.21 | |||||
| 19 | 5300120781 | Condenser (not Original Equipment-service Replacement On |
|
- | |||||
| 20 | 5306593887 | Plug-drain |
|
- | |||||
| 21 | 5303210159 | Plug-drain (gray) |
|
- | |||||
| 22 | 06594053 | Adapter, Hose |
|
- | |||||
| 23 | 5304496560 | Control Temp (Replaces: 5303212610) |
|
$ 49.62 | |||||
| 24 | 216034505 | Knob-control |
|
- | |||||
| 25 | 5303208663 | Plug-indicator |
|
- | |||||
| 26 | 216108300 | Panel-access |
|
- | |||||
| 27 | 5309950877 | Retainer (4) |
|
- | |||||
| 28 | 5303305677 | Drier-filter (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 29 | 216138300 | Harness |
|
- | |||||
| 30 | 216022800 | Screw |
|
- | |||||
| 31 | 216036600 | Screw-ground |
|
- | |||||
| 32 | 215175000 | Grommet |
|
- | |||||
| 33 | 5303212614 | Clip Harness |
|
$ 2.88 | |||||
| 34 | 216138400 | Compressor |
|
- | |||||
| 35 | 216008900 | Relay |
|
- | |||||
| 36 | 216147800 | Clamp |
|
- | |||||
| 37 | 5303206885 | Overload |
|
$ 119.23 | |||||
| 38 | 3017761 | Run Capacitor |
|
- | |||||
| 39 | 216056400 | Clip |
|
- | |||||
| 40 | 08016777 | Clamp-power Cord |
|
- | |||||
| 41 | 5303296329 | Label-food Storage |
|
- | |||||
| 42 | 216141101 | Plug-hole Lid |
|
$ 2.57 |
