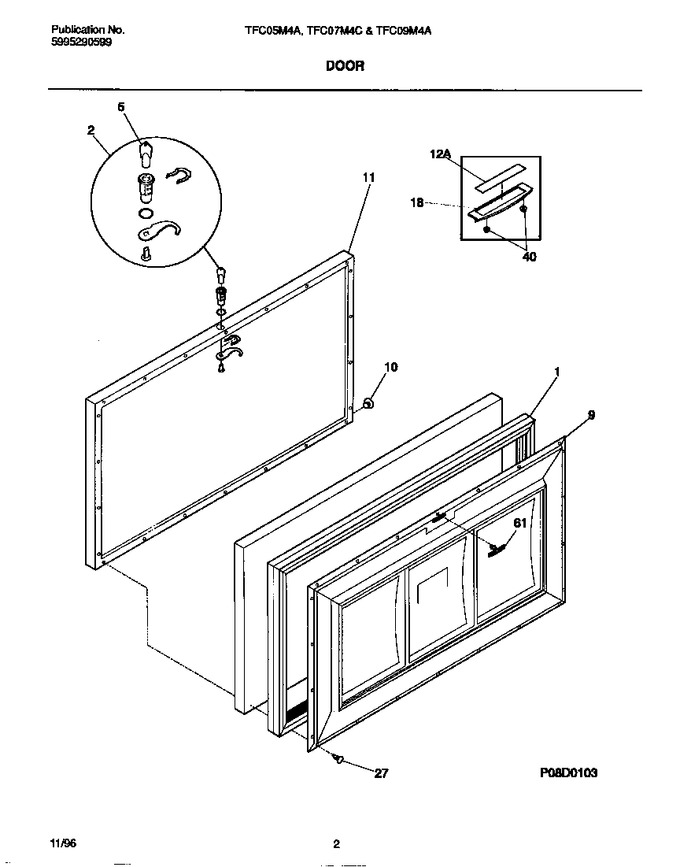

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481003		Gasket-door/lid, Grey		Appelez-nous	-
2	5303925134		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216063000		Panel-inner Lid, White		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216117900		Panel-outer Door\lid,white		Appelez-nous	-
12	216151000		Insert-handle		Appelez-nous	-
18	216446600		Handle				$ 43.42
27	5303212828		Screw, Panel				$ 16.63
40	5309948647		Fastener, Handle		Appelez-nous	-
61	5309948955		Clip-panel				$ 11.53
*81960	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
