01 - Cover


02 - Door, Cabinet, Unit

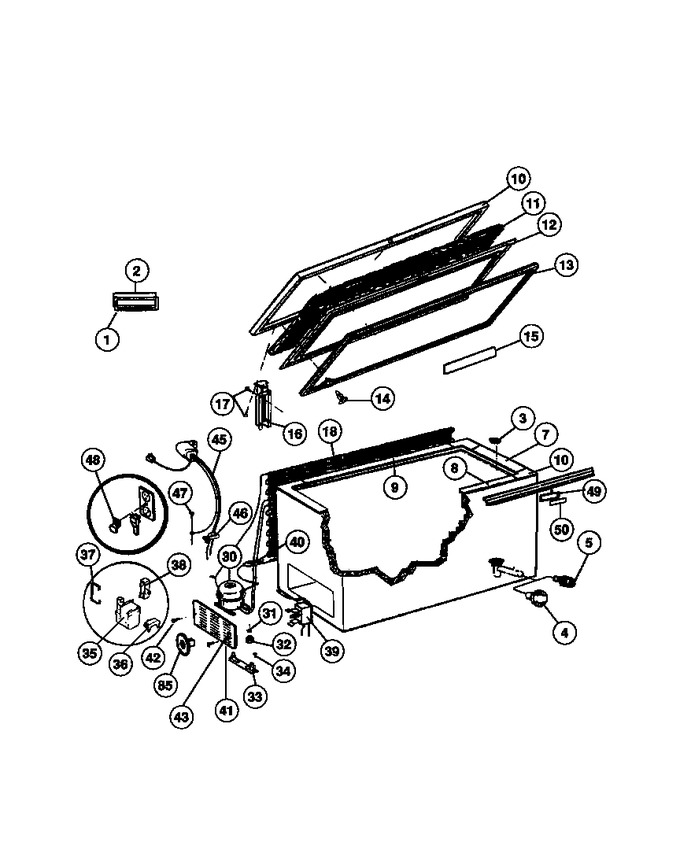

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216140200		Handle		Appelez-nous	-
2	08009392		Gasket		Appelez-nous	-
10	216129800		Lid Exterior-white		Appelez-nous	-
11	5300128901		Insulation Lid		Appelez-nous	-
12	216057606		Panel-inner				$ 307.81
13	216079800		Gasket-white		Appelez-nous	-
14	5303212828		Clip Panel (36)				$ 16.63
15	5303296329		Label-food Storage		Appelez-nous	-
16	216039600		Hinge		Appelez-nous	-
17	5309950602		Screw Hinge				$ 5.30
18	5300114029		Condenser (not Original Equipment--service Replacement O		Appelez-nous	-
20	5306593887		Plug-drain		Appelez-nous	-
21	216110700		Breaker Corner-white				$ 28.45
22	216110800		Breaker End-white		Appelez-nous	-
23	216110900		Breaker Rear-white		Appelez-nous	-
24	216110900		Breaker Front-white		Appelez-nous	-
26	5303210159		Plug-drain		Appelez-nous	-
27	06594053		Adapter, Hose		Appelez-nous	-
30	5300186042		Compressor		Appelez-nous	-
31	216056400		Clip Compressor		Appelez-nous	-
32	215175000		Grommet-compressor		Appelez-nous	-
33	5303212615		Support, Compressor		Appelez-nous	-
34	216036600		Screw		Appelez-nous	-
35	216008900		Relay		Appelez-nous	-
36	5303206816		Overload		Appelez-nous	-
37	216147800		Clamp		Appelez-nous	-
38	3017761		Run Capacitor		Appelez-nous	-
39	5304496560		Control Temperature   (Replaces: 5303212610)				$ 49.62
40	5303305677		Drier-filter   (Replaces: 5308000027)			Immediately	$ 31.67
41	216022700		Access Panel		Appelez-nous	-
42	5300050149		Screw-access Panel		Appelez-nous	-
43	5303208663		Plug-indicator		Appelez-nous	-
44	216034505		Control Knob		Appelez-nous	-
45	5303291909		Harness		Appelez-nous	-
46	5303212614		Clip Harness				$ 2.88
47	08016776		Screw		Appelez-nous	-
48	08016777		Clamp-power Cord (not Original Equipment--customer Purch		Appelez-nous	-
49	08037409		Frame-nameplate		Appelez-nous	-
50	216203600		Nameplate		Appelez-nous	-
