SELECT A DIAGRAM

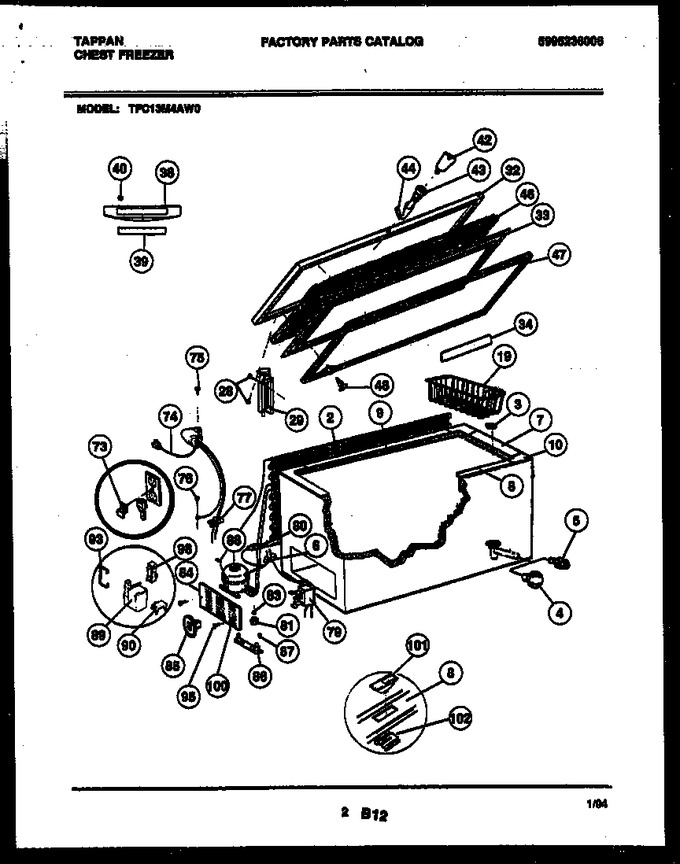

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303280307 | External Condenser (not Original Equipment-service Repla |
|
$ 640.71 | |||||
| 3 | 5306593887 | Plug, Drain, Liner |
|
- | |||||
| 4 | 5303210159 | Plug-drain Shell |
|
- | |||||
| 5 | 06594053 | Adapter, Hose |
|
- | |||||
| 6 | 08016808 | Grommet-control Tube |
|
- | |||||
| 7 | 216110803 | Breaker Ends-gray |
|
- | |||||
| 8 | 216111503 | Breaker Front-gray |
|
- | |||||
| 9 | 216110903 | Breaker Rear-gray |
|
- | |||||
| 10 | 216110703 | Breaker Comers-gray |
|
- | |||||
| 19 | 216080300 | Basket (2) |
|
- | |||||
| 28 | 5309950602 | Screw Hinge |
|
$ 5.30 | |||||
| 29 | 216039600 | Hinge |
|
- | |||||
| 32 | 216129802 | Lid Exterior-white |
|
- | |||||
| 33 | 216057604 | Panel-inner Lid-white |
|
- | |||||
| 34 | 3017639 | Light Shield |
|
- | |||||
| 38 | 5309950054 | Handle |
|
- | |||||
| 39 | 216151000 | Insert-handle |
|
- | |||||
| 40 | 5309948647 | Fastener, Handle |
|
- | |||||
| 41 | 5303296329 | Label-food Storage |
|
- | |||||
| 42 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 43 | 5303925107 | Lock-complete |
|
- | |||||
| 44 | 5300300791 | Lock Hook |
|
- | |||||
| 46 | 5300128901 | Insulation Lid |
|
- | |||||
| 47 | 216079803 | Gasket-lid-gray |
|
- | |||||
| 48 | 5303212828 | Clip Panel (36) |
|
$ 16.63 | |||||
| 73 | 08016777 | Clip-cord |
|
- | |||||
| 74 | 216089600 | Wiring Harness |
|
- | |||||
| 75 | 08009412 | Screw |
|
- | |||||
| 76 | 08009412 | Screw |
|
- | |||||
| 77 | 08016762 | Clip Wires |
|
- | |||||
| 79 | 5304496560 | Control Temperature (Replaces: 5303212610) |
|
$ 49.62 | |||||
| 80 | 5303305677 | Drier-filter (Replaces: 5300152474) |
|
Immediately | $ 31.67 | ||||
| 81 | 215175000 | Grommet-compressor |
|
- | |||||
| 83 | 216147800 | Clip-compressor |
|
- | |||||
| 84 | 216022700 | Access Panel |
|
- | |||||
| 85 | 216034505 | Control Knob |
|
- | |||||
| 86 | 5303212615 | Support, Compressor |
|
- | |||||
| 87 | 08016776 | Screw-support |
|
- | |||||
| 88 | 216120800 | Compressor |
|
- | |||||
| 89 | 216008900 | Relay |
|
- | |||||
| 90 | 5303206816 | Overload |
|
- | |||||
| 93 | 215012000 | Clamp, Cover |
|
$ 2.63 | |||||
| 95 | 216858001 | Screw-access Panel (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 98 | 5304464438 | Run Capacitor (Replaces: 216236300) |
|
Immediately | $ 35.38 | ||||
| 100 | 5303208663 | Plug-indicator |
|
- | |||||
| 101 | 5303210240 | Latch Catch |
|
- | |||||
| 102 | 216080800 | Latch Catch-support |
|
- |
