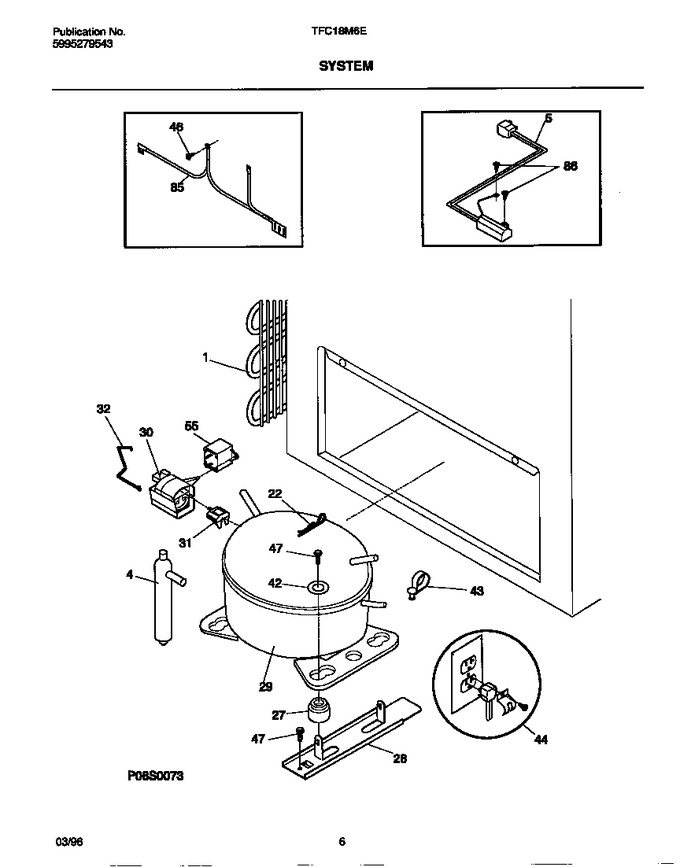

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303280307		Condenser				$ 640.71
4	5303305677		Drier, Filter   (Replaces: 216099900)			Immediately	$ 31.67
5	216089500		Harness-wire		Appelez-nous	-
22	216056400		Clip, Spring Mtg		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
28	5303212615		Support, Compressor		Appelez-nous	-
29	5304511983		Compressor, R134a, With Overload   (Replaces: 5303925326)				$ 671.86
30	216008900		Starter-ptc		Appelez-nous	-
31	216100108		Overload Protector				$ 38.12
32	216158300		Clip, Starter, 2 Speed		Appelez-nous	-
42	216232700		Washer-flat		Appelez-nous	-
43	5303212614		Clip Harness				$ 2.88
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
47	08016776		Screw-compressor, Ind Hwh Type T, 10-32 X 1/2, Support		Appelez-nous	-
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
85	5303294326		Wire Ground, Compressor		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
