SELECT A DIAGRAM

01 - Cover


02 - Door

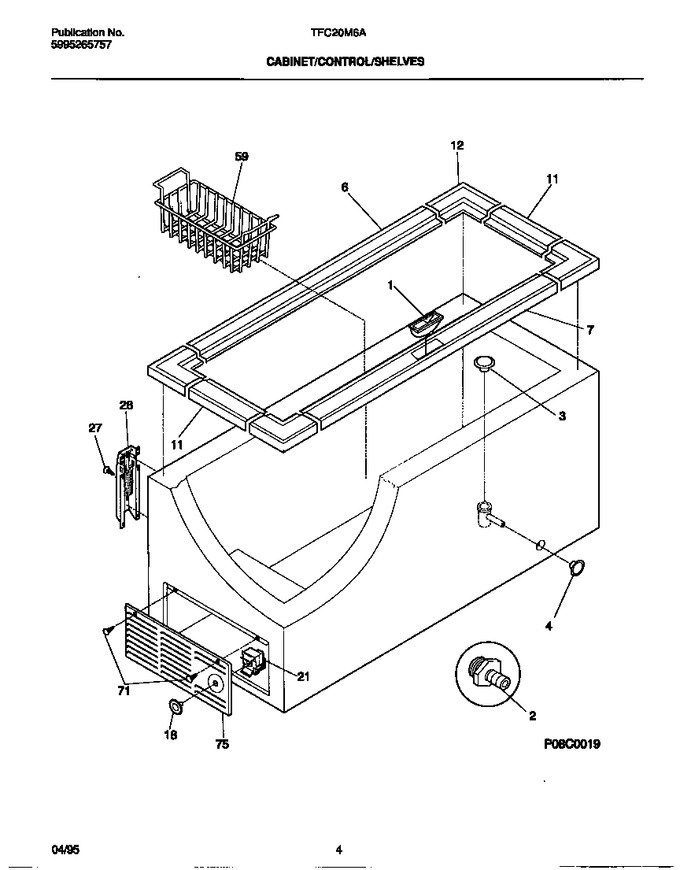

03 - Cabinet/control/shelves


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216080800		Support, Lock		Appelez-nous	-
2	216269500		Adapter, Drain				$ 14.81
3	216297600		Plug-drain		Appelez-nous	-
4	216073904		Plug-drain		Appelez-nous	-
6	5303925162		Breaker, Grey, Hinge Side		Appelez-nous	-
7	5303925161		Breaker, Grey, Lock Side		Appelez-nous	-
11	216110803		Breaker, Grey, Ends		Appelez-nous	-
12	216110703		Breaker, Grey, Corners		Appelez-nous	-
18	216034505		Knob-control		Appelez-nous	-
21	5304496560		Control Temperature   (Replaces: 5303212610)				$ 49.62
27	5309950602		Screw Hinge				$ 5.30
28	216035300		Hinge		Appelez-nous	-
59	216080300		Basket (3)		Appelez-nous	-
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
75	216034301		Panel-access, White				$ 103.01
*56361	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
