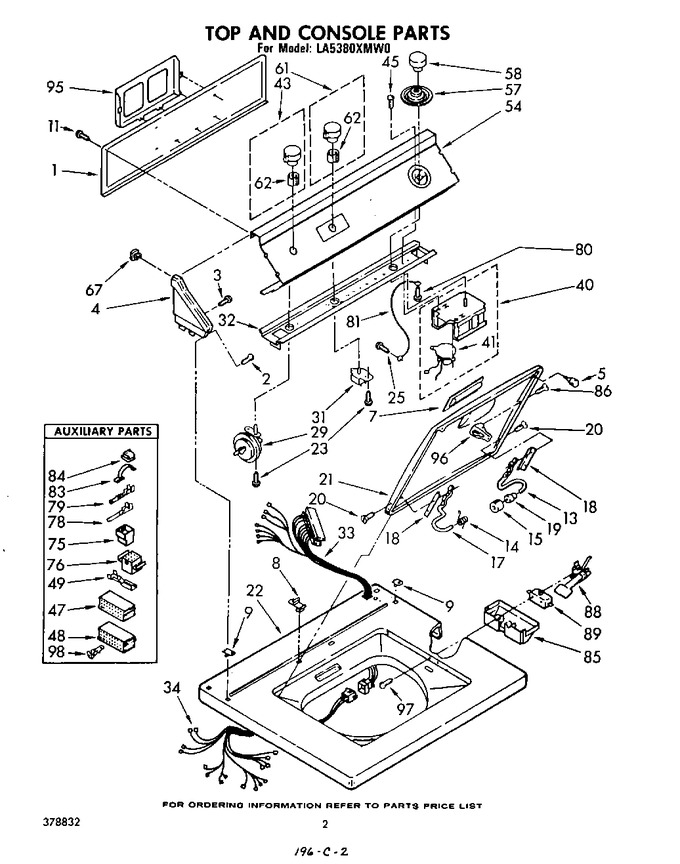

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	359372		Panel, Rear Console		Appelez-nous	-
2	358225		Screw, 8-18 X 1		Appelez-nous	-
3	355326		Screw, 13-16 X 5/8		Appelez-nous	-
4	375315		Cap, End (l.h.) (almond)		Appelez-nous	-
4	375309		Cap, End L.h. (white)		Appelez-nous	-
4	375313		Cap, End L.h. (almond Cap, End R.h.)		Appelez-nous	-
4	375305		Cap, End (l.h.) (white)		Appelez-nous	-
5	WP9724509		Bumper, Rubber   (Replaces: 93770)			Immediately	$ 7.14
7	379885		Handle, Lid (almond)		Appelez-nous	-
7	379884		Handle, Lid (white)		Appelez-nous	-
8	358472		Stop, Push-in Top (1)		Appelez-nous	-
9	358473		Nut, Push-in (2)				$ 5.84
11	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 12.65
13	WP91770		Hinge, R.h.   (Replaces: 91770)				$ 24.71
14	DE81-05611A		Spring, Hinge (l.h.)   (Replaces: 92398)				$ 150.30
15	91605		Bumper, Lid Hinge (1)		Appelez-nous	-
17	91099		Hinge, L.h.		Appelez-nous	-
18	WP21097		Pad, Hinge (2)   (Replaces: 21097)				$ 7.02
19	WP21258		Bearing, Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
20	WPW10119828		Screw, Hinge Mounting   (Replaces: 18724)			Immediately	$ 6.47
21	384714		Lid (almond)		Appelez-nous	-
21	384713		Lid (white)		Appelez-nous	-
22	384018		Top (white)		Appelez-nous	-
22	384019		Top (almond)		Appelez-nous	-
23	WP90767		Screw, 8 X 3/8   (Replaces: 90767)			Immediately	$ 7.04
25	WP3351614		Screw, 10 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
29	386368		Switch, Water Level		Appelez-nous	-
31	358935		Switch, Water Temperature (alt.)		Appelez-nous	-
31	660746		Switch, Water Temperature		Appelez-nous	-
31	358934		Switch, Water Temperature (alt.)		Appelez-nous	-
32	359708		Bracket, Control		Appelez-nous	-
33	359370		Harness, Console		Appelez-nous	-
34	358116		Harness, Cabinet		Appelez-nous	-
40	362681		Use W/c.c.a. Timer		Appelez-nous	-
40	365941		Motor, Timer (60 Hz.) (use W/mallory Timer)		Appelez-nous	-
40	385325		Timer, 60 Hz. Mallory (alt.)		Appelez-nous	-
40	385322		Timer, 60 Hz. C.c.a. (alt.)		Appelez-nous	-
40	660970		Timer, 60 Hz.		Appelez-nous	-
43	690297		Knob Assembly, Water Level		Appelez-nous	-
45	WP356418		Screw, Timer Mounting   (Replaces: 96435)				$ 7.13
47	W10876590		Block, Disconnect   (Replaces: 352089)				$ 11.48
48	352090		Block, Disconnect		Appelez-nous	-
49	352088		Terminal, Female				$ 5.83
54	384782		Panel, Control		Appelez-nous	-
57	359254		Dial, Timer		Appelez-nous	-
58	359206		Knob, Timer		Appelez-nous	-
61	690300		Knob, Water Temperature		Appelez-nous	-
62	WP688805		Clip, Control Knob   (Replaces: 688805)			Immediately	$ 7.03
67	689559		Nut, Push-in (4)		Appelez-nous	-
75	94612		Cap, Terminal (console Harness)		Appelez-nous	-
76	94611		Plug, Terminal (cabinet Harness)		Appelez-nous	-
78	94613		Terminal, (male)		Appelez-nous	-
79	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
80	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
81	3184020		Wire, Ground   (Replaces: 54570)				$ 74.50
83	WP98997		Clip   (Replaces: 98997)				$ 9.98
84	WP90016		Clip   (Replaces: 90016)				$ 10.19
85	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
86	354975		Screw & Washer		Appelez-nous	-
88	370959		Switch Actuator Assembly				$ 33.01
89	W10820036		Switch, Lid (alt.)   (Replaces: 364091)			Immediately	$ 27.45
89	W10820036		Switch, Lid   (Replaces: 660308)			Immediately	$ 27.45
89	00-6163		Switch, Lid (alt.)   (Replaces: 364090)				$ 22.92
89	W10820036		Switch, Lid (alt.)   (Replaces: 367034)			Immediately	$ 27.45
95	357645		Rack, Literature		Appelez-nous	-
96	357633		Strike, Lid Switch		Appelez-nous	-
97	354764		Screw & Washer		Appelez-nous	-
98	357695		Ring, Grounding		Appelez-nous	-
