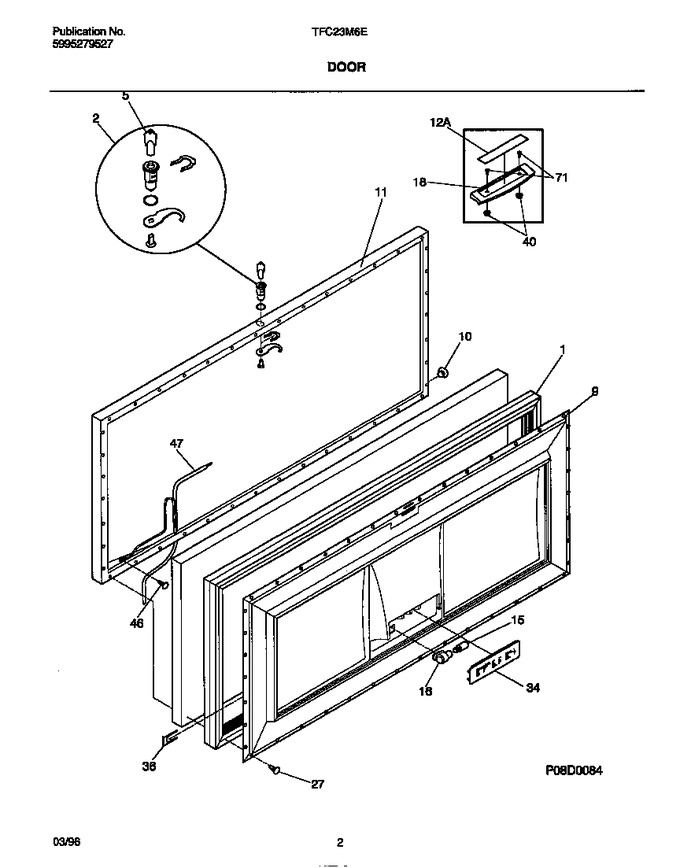

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216080203		Gasket-door/lid, Grey		Appelez-nous	-
2	5303925107		Lock Assy		Appelez-nous	-
3	5300114366		Washer		Appelez-nous	-
4	5303283905		Cylinder, Lock		Appelez-nous	-
4	5300300791		Hook, Lock		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216061104		Panel-inner\lid Door, White		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216130203		Panel-outer Door, White		Appelez-nous	-
12	216151000		Insert-handle		Appelez-nous	-
15	5304517886		Light Bulb/lamp   (Replaces: 216222700)			Immediately	$ 73.06
16	216039700		Socket, Light/lamp		Appelez-nous	-
18	216446700		Handle, White		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
34	216328700		Shield-light		Appelez-nous	-
36	5306599968		Plate, Backup, Light Switch		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
47	216040000		Harness-wire		Appelez-nous	-
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
*76240	5303917276		Insulation				$ 330.91
