SELECT A DIAGRAM

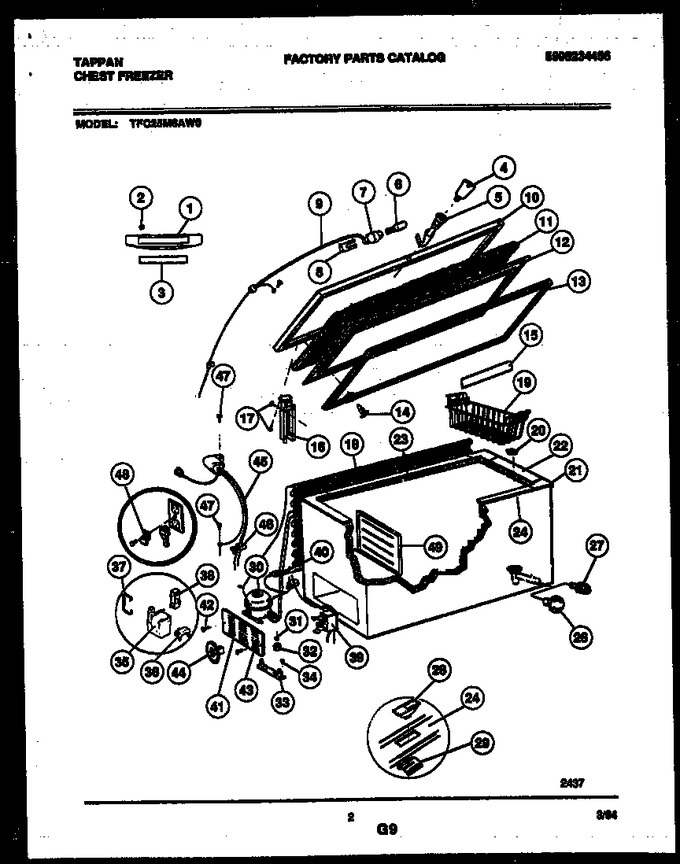

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5309950054 | Handle |
|
- | |||||
| 2 | 5309948647 | Fastener |
|
- | |||||
| 3 | 216151000 | Insert |
|
- | |||||
| 4 | 297147700 | Key (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 5 | 5303925107 | Lock-complete |
|
- | |||||
| 6 | 5304517886 | Bulb (Replaces: 216222700) |
|
Immediately | $ 73.06 | ||||
| 7 | 216039700 | Socket |
|
- | |||||
| 8 | 5306599968 | Retainer |
|
- | |||||
| 9 | 216040000 | Harness-lid |
|
- | |||||
| 10 | 216032402 | Lid Exterior-white |
|
- | |||||
| 11 | 5300128901 | Insulation |
|
- | |||||
| 12 | 216072504 | Panel-inner |
|
- | |||||
| 13 | 216085603 | Gasket-gray |
|
- | |||||
| 14 | 5303212828 | Clip (46) |
|
$ 16.63 | |||||
| 15 | 216160400 | Shield-light |
|
- | |||||
| 16 | 297321900 | Hinge (Replaces: 5303925006) |
|
$ 90.01 | |||||
| 17 | 5309950602 | Screw Hinge |
|
$ 5.30 | |||||
| 18 | 5300300173 | Condenser (not Original Equipment-service Replacement On |
|
- | |||||
| 19 | 216080300 | Basket (4) |
|
- | |||||
| 20 | 5306593887 | Plug-drain |
|
- | |||||
| 21 | 216110703 | Breaker Corner-gray |
|
- | |||||
| 22 | 216110803 | Breaker End-gray |
|
- | |||||
| 23 | 216111403 | Breaker-rear-gray |
|
- | |||||
| 24 | 216112003 | Breaker-front-gray |
|
- | |||||
| 26 | 5303210159 | Plug-drain |
|
- | |||||
| 27 | 06594053 | Adapter, Hose |
|
- | |||||
| 28 | 5303210240 | Latch-gray |
|
- | |||||
| 29 | 216080800 | Support-latch |
|
- | |||||
| 30 | 5303916022 | Compressor |
|
- | |||||
| 31 | 216056400 | Clip |
|
- | |||||
| 32 | 215175000 | Grommet |
|
- | |||||
| 33 | 5303212615 | Support |
|
- | |||||
| 34 | 216036600 | Screw |
|
- | |||||
| 35 | 216008900 | Relay |
|
- | |||||
| 36 | 5308037789 | Overload |
|
- | |||||
| 37 | 215012000 | Clamp |
|
$ 2.63 | |||||
| 38 | 5303289028 | Run Capacitor |
|
- | |||||
| 39 | 5304496560 | Control Temperature (Replaces: 5303212610) |
|
$ 49.62 | |||||
| 40 | 5303305677 | Drier-filter (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 41 | 216022700 | Pane-accessl |
|
- | |||||
| 42 | 5300050149 | Screw-panel |
|
- | |||||
| 43 | 5303208663 | Plug-indicator |
|
- | |||||
| 44 | 216034505 | Knob-control |
|
- | |||||
| 45 | 216089500 | Harness |
|
- | |||||
| 46 | 5303212614 | Clip Harness |
|
$ 2.88 | |||||
| 47 | 08016776 | Screw |
|
- | |||||
| 48 | 08016777 | Clamp-power Cord |
|
- | |||||
| 49 | 5308016784 | Divider-drain Pan |
|
- |
