SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet/control/shelves


04 - System

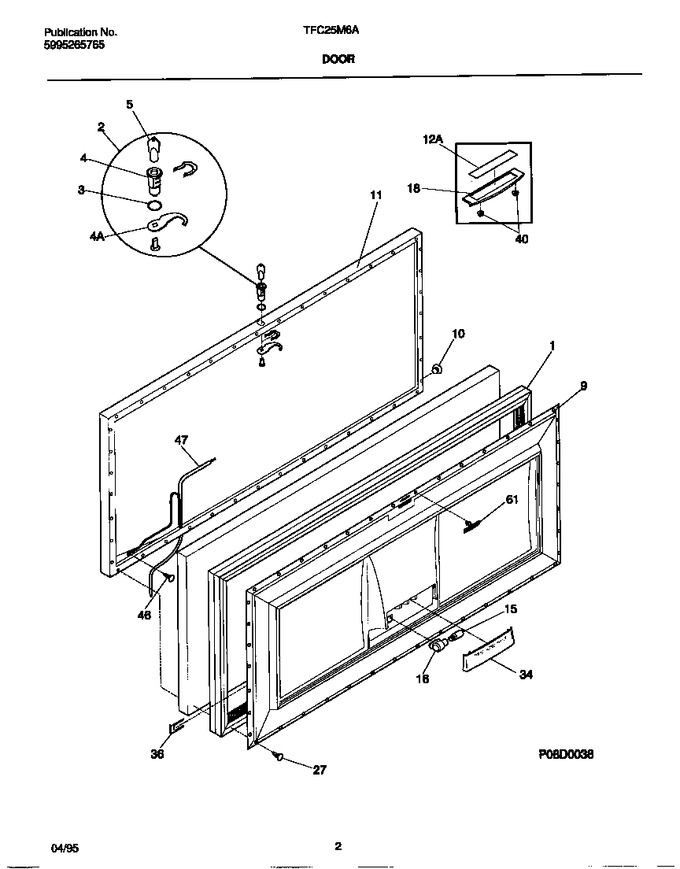

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216085603		Gasket-lid, Grey		Appelez-nous	-
2	5303925107		Lock Assy		Appelez-nous	-
3	5300114366		Washer		Appelez-nous	-
4	5303283905		Cylinder, Lock		Appelez-nous	-
4	5300300791		Hook, Lock		Appelez-nous	-
5	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
9	216072504		Panel-inner Lid, White		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216032402		Panel-outer Lid, White		Appelez-nous	-
12	216151000		Insert-handle		Appelez-nous	-
15	5304517886		Bulb-light   (Replaces: 216222700)			Immediately	$ 73.06
16	216039700		Socket-light		Appelez-nous	-
18	216160400		Handle		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
34	5303296969		Shield-light		Appelez-nous	-
36	5306599968		Backup Plate, Light Switch Assy		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8-32 X 1/2 47				$ 3.57
47	216040000		Harness-lid		Appelez-nous	-
61	5309948955		Clip-panel				$ 11.53
*92840	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
