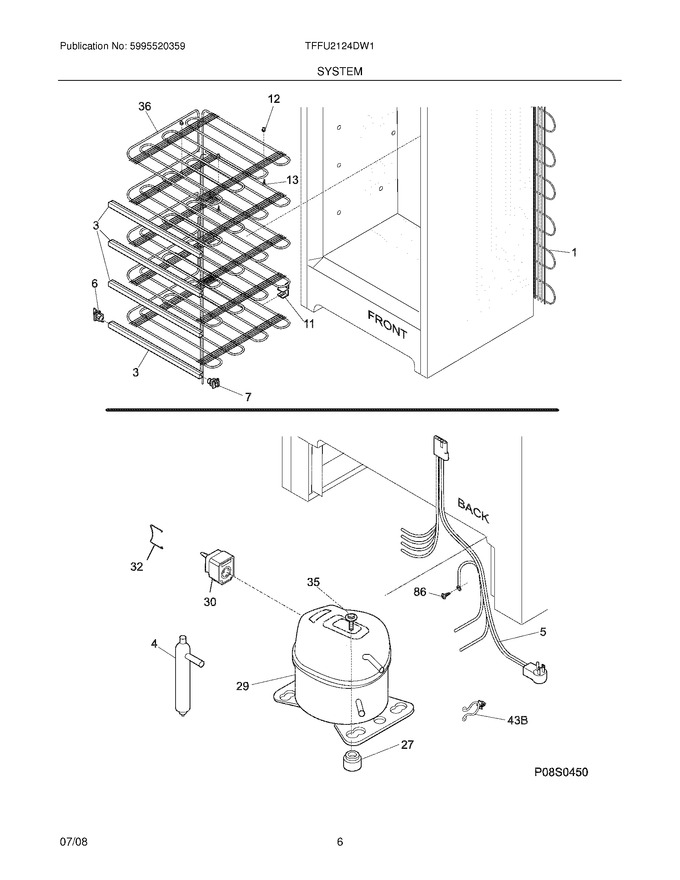

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304509723 | Trim-shelf,evaporator (Replaces: 216847806) |
|
$ 31.81 | |||||
| 4 | 216987500 | Drier-filter |
|
- | |||||
| 6 | 297001600 | Support-shelf,front Lh |
|
$ 18.08 | |||||
| 7 | 297001500 | Support-shelf,front Rh |
|
$ 18.08 | |||||
| 11 | 216474600 | Support-rear Shelf |
|
$ 16.55 | |||||
| 12 | 216225700 | Grommet-spacer |
|
$ 7.77 | |||||
| 13 | 216138901 | Screw,hex Sems ,8-18ab X 1.00 ,evap |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 30 | 297051001 | Controller,compressor |
|
$ 41.69 | |||||
| 32 | 297051100 | Clamp,elec Cont Mtg ,compressor |
|
- | |||||
| 35 | 297177200 | Bolt,compressor |
|
- | |||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 13.65 | |||||
| 43B | 297315800 | Clip (Replaces: 297048400) |
|
$ 10.13 | |||||
| F1 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| F29 | 5304478809 | Compressor,w/grommets ,w/o Electricals (Replaces: 297068201) |
|
Immediately | $ 584.96 | ||||
| F36 | 5304506302 | Evaporator,tubing Assy ,white (Replaces: 297212100) |
|
$ 324.59 | |||||
| F5 | 297173100 | Harness-main |
|
$ 73.00 | |||||
| FNI | 297366805 | Cord-power,flat (Replaces: 297169900) |
|
$ 68.68 | |||||
| NI | 216502500 | Sleeve,suction Line |
|
$ 10.85 | |||||
| NI | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| NI | 297102800 | Spacer-tube |
|
- |
