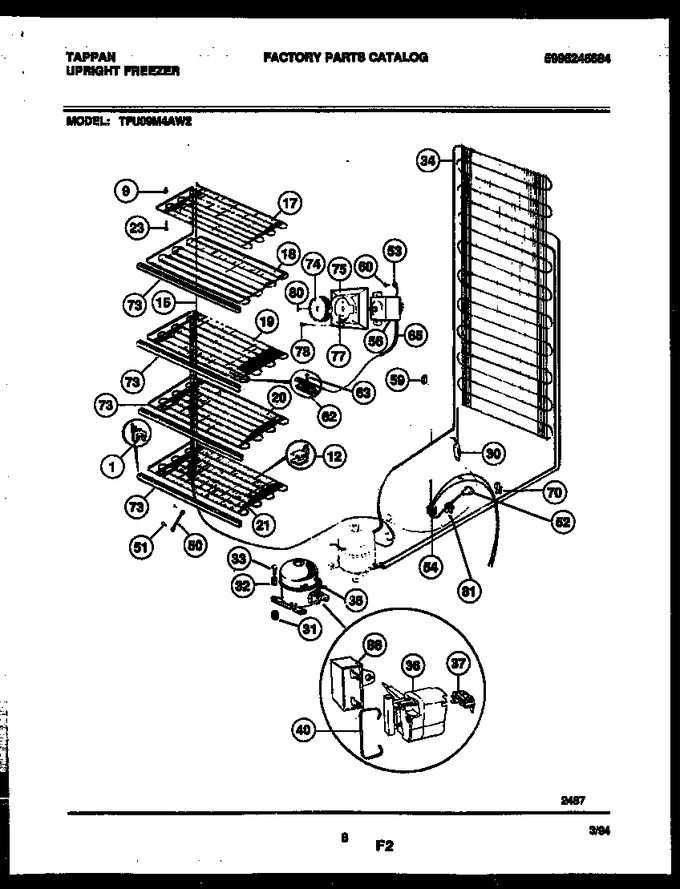

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - System And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 297001600 | Support-front Lh (4) (Replaces: 3091418) |
|
$ 18.08 | |||||
| 9 | 216225700 | Spacer Top Grid (3) |
|
$ 7.77 | |||||
| 12 | 216225600 | Support Rear (6) |
|
- | |||||
| 15 | 5308010744 | Heat Exchanger |
|
- | |||||
| 17 | 216069300 | Top Grid |
|
$ 160.39 | |||||
| 18 | 216069400 | First Shelf |
|
- | |||||
| 19 | 216069500 | Second Shelf |
|
- | |||||
| 21 | 216069600 | Bottom Shelf |
|
- | |||||
| 23 | 216138900 | Screw Top Grid |
|
$ 3.31 | |||||
| 30 | 5303305677 | Drier-filter (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 31 | 216498900 | Grommet (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 32 | 5306594529 | Sleeve |
|
$ 10.34 | |||||
| 33 | 08002679 | Screw |
|
- | |||||
| 34 | 5303304537 | External Condenser (not Original Equipment. Service Rep |
|
- | |||||
| 35 | 216138400 | Compressor |
|
- | |||||
| 36 | 216008900 | Relay |
|
- | |||||
| 37 | 5303206885 | Overload |
|
$ 119.23 | |||||
| 40 | 216147800 | Clamp |
|
- | |||||
| 50 | 06594651 | Wire, Ground |
|
- | |||||
| 51 | 08009412 | Screw |
|
- | |||||
| 52 | 5303017718 | Clamp-power Cord |
|
- | |||||
| 53 | 5300125347 | Ground Wire |
|
- | |||||
| 54 | 216232800 | Wiring Harness W/power Cord |
|
- | |||||
| 56 | 216150300 | Control-temperature |
|
- | |||||
| 59 | 08037401 | Retainer Harness |
|
$ 2.85 | |||||
| 60 | 08009412 | Screw |
|
- | |||||
| 62 | 08037931 | Clamp-capillary |
|
- | |||||
| 63 | 5300052943 | Screw Capillary Clamp |
|
$ 5.30 | |||||
| 65 | 5308037932 | Sleeve Control Cap Tube |
|
- | |||||
| 70 | 5303212614 | Clip Harness |
|
$ 2.88 | |||||
| 73 | 5304509722 | Shelf Trim (3) (Replaces: 216097800) |
|
$ 28.20 | |||||
| 74 | 5303210185 | Knob Control |
|
- | |||||
| 75 | 5303288184 | Housing Cold Control |
|
- | |||||
| 77 | 08003539 | Screw Control To Cover |
|
- | |||||
| 78 | 5300050149 | Screw Cover To Liner |
|
- | |||||
| 80 | 09950853 | Screw, Knob |
|
- | |||||
| 81 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 86 | 5304464438 | Run Capacitor (Replaces: 216236300) |
|
Immediately | $ 35.38 | ||||
| 1A | 297001500 | Support Front Rh (4) (non-illustrated) (Replaces: 08037928) |
|
$ 18.08 | |||||
| 54A | 08016777 | Clip-power Cord To Outlet (non-illustrated) |
|
- |
