SELECT A DIAGRAM
01 - Cover

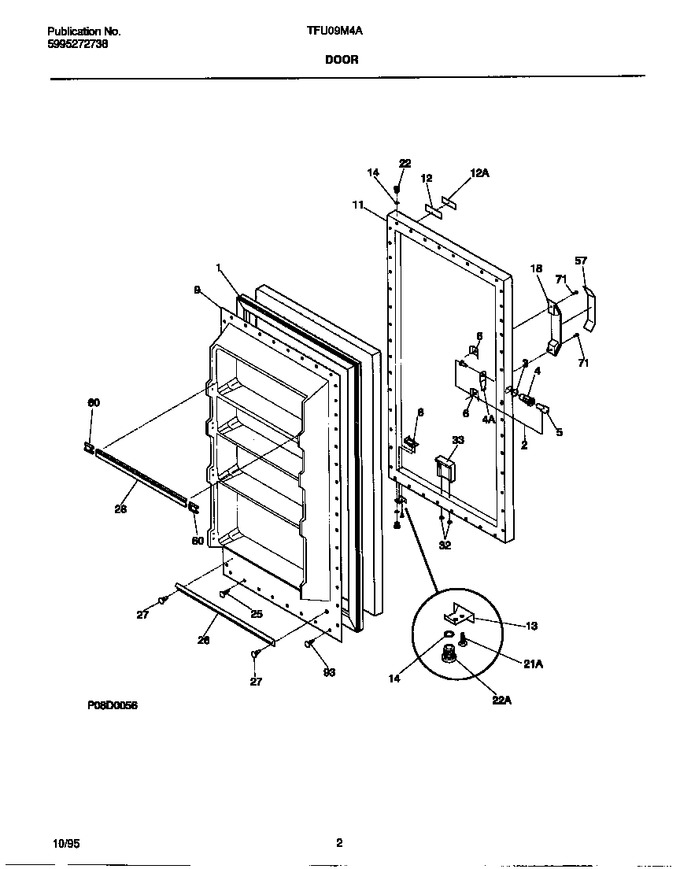

02 - Door
03 - Cabinet/control/shelves
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206236 | Gasket Door |
|
$ 239.56 | |||||
| 2 | 5303925134 | Lock Assy |
|
- | |||||
| 3 | 5300114366 | Washer |
|
- | |||||
| 4 | 216330800 | Hook, Lock |
|
- | |||||
| 4 | 5303283905 | Cylinder, Lock |
|
- | |||||
| 5 | 297147700 | Key, Lock (Replaces: 216388700) |
|
Immediately | $ 7.57 | ||||
| 6 | 218990001 | Screw-anchor,8-18 (Replaces: 5300158222) |
|
$ 16.30 | |||||
| 8 | 5300091170 | Reinforcement, Door Stop |
|
- | |||||
| 9 | 216048429 | Panel-inner Door\lid, White |
|
- | |||||
| 11 | 216011203 | Panel-outer Door\lid, White |
|
- | |||||
| 12 | 08037409 | Bezel Nameplate |
|
- | |||||
| 12 | 216203600 | Insert-bezel |
|
- | |||||
| 13 | 08016354 | Door Stop |
|
$ 36.07 | |||||
| 14 | 5303313518 | Washer, Sealing |
|
- | |||||
| 18 | 5303288185 | Handle |
|
- | |||||
| 21 | 08005520 | Screw-door Stop |
|
- | |||||
| 22 | 5303210403 | Bearing |
|
- | |||||
| 22 | 5303925197 | Bearing |
|
$ 23.73 | |||||
| 25 | 216022800 | Screw, Washer Head, 8, 18 X 1/2 |
|
- | |||||
| 26 | 08009385 | Gasket Secondary |
|
- | |||||
| 27 | 5303212828 | Screw, Panel |
|
$ 16.63 | |||||
| 28 | 216160500 | Rack-shelf, Narrow, White |
|
- | |||||
| 32 | 5309950074 | Breather-air Duct, Door |
|
$ 12.48 | |||||
| 33 | 5303212700 | Air Duct |
|
- | |||||
| 57 | 3017682 | Insert Handle |
|
Immediately | $ 43.24 | ||||
| 60 | 5303298264 | Support-rack, Lh-rh |
|
- | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| *48320 | 5303296404 | Clip-handle Base |
|
$ 1.68 | |||||
| *48321 | 5303917276 | Insulation |
|
$ 330.91 |
