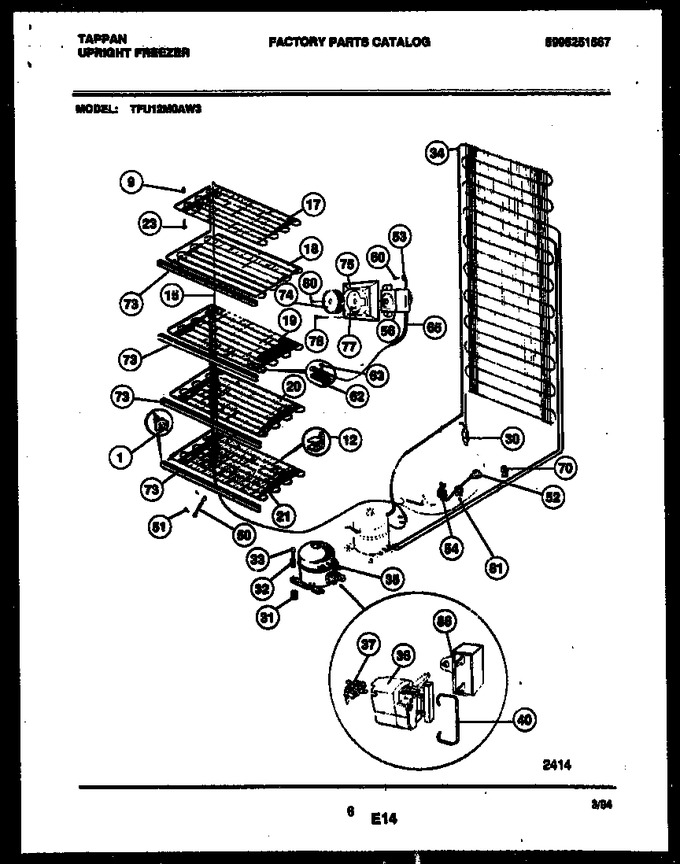

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297001600		Support Front-lh (3)   (Replaces: 3091418)				$ 18.08
9	216225700		Spacer Top Grid (3)				$ 7.77
12	216225600		Support Rear (6)		Appelez-nous	-
15	5308010744		Heat Exchanger		Appelez-nous	-
17	216069700		Top Grid		Appelez-nous	-
18	216069800		First Shelf		Appelez-nous	-
19	216069900		Second Shelf		Appelez-nous	-
21	216070000		Bottom Shelf				$ 99.23
23	216138900		Screw Top Grid				$ 3.31
30	5303305677		Drier-filter   (Replaces: 5308000027)			Immediately	$ 31.67
31	216498900		Grommet   (Replaces: 5308002681)				$ 13.01
32	5306594529		Sleeve				$ 10.34
33	08002679		Screw		Appelez-nous	-
34	5300083897		Condenser				$ 538.37
35	216138400		Compressor		Appelez-nous	-
36	216008900		Relay		Appelez-nous	-
37	5303206885		Overload				$ 119.23
40	216147800		Clamp		Appelez-nous	-
50	06594651		Wire, Ground		Appelez-nous	-
51	08009412		Screw		Appelez-nous	-
52	5303017718		Clamp-power Cord		Appelez-nous	-
53	5300125347		Ground Wire		Appelez-nous	-
54	216232800		Wiring Harness W/power Cord		Appelez-nous	-
56	216260400		Control Temp				$ 178.23
60	08009412		Screw		Appelez-nous	-
62	08037931		Clamp-capillary		Appelez-nous	-
63	5300052943		Screw Capillary Clamp				$ 5.30
65	5308037932		Sleeve Control Cap Tube		Appelez-nous	-
70	5303212614		Clip Harness				$ 2.88
73	5304509722		Shelf Trim (3)   (Replaces: 216097800)				$ 28.20
74	216008602		Knob-control		Appelez-nous	-
75	5303288184		Housing Cold Control		Appelez-nous	-
77	08003539		Screw Control To Cover		Appelez-nous	-
78	5300050149		Screw Cover To Liner		Appelez-nous	-
80	09950853		Screw, Knob		Appelez-nous	-
81	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
86	5304464438		Run Capacitor   (Replaces: 216236300)			Immediately	$ 35.38
1A	297001500		Support Front Rh (3) (non-illustrated)   (Replaces: 08037928)				$ 18.08
