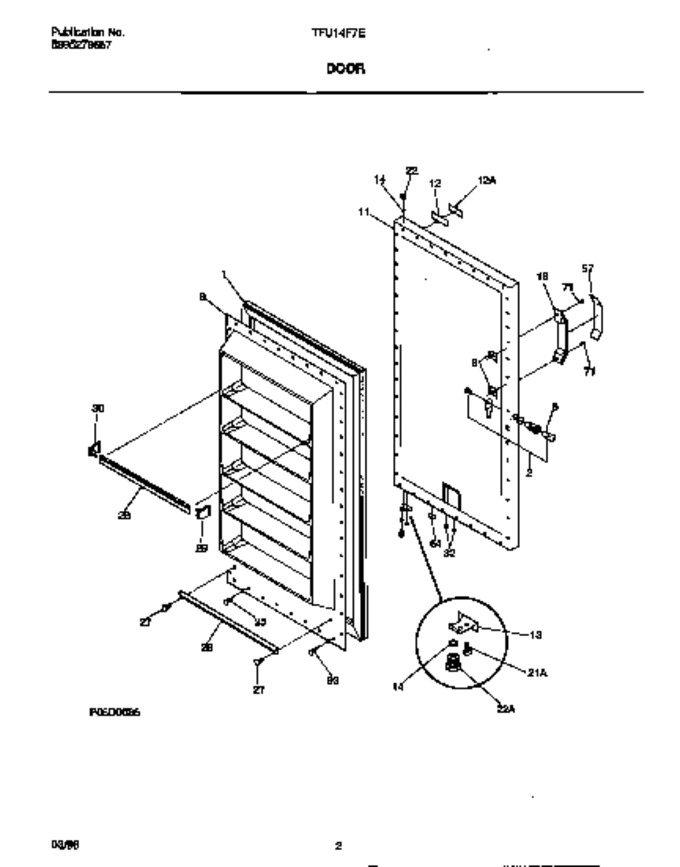

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206250 | Gasket Door |
|
- | |||||
| 2 | 5303925107 | Lock Assy |
|
- | |||||
| 5 | 297147700 | Key, Lock (Replaces: 216388700) |
|
Immediately | $ 7.57 | ||||
| 6 | 218990001 | Screw-anchor,8-18 (Replaces: 5300158222) |
|
$ 16.30 | |||||
| 9 | 216359416 | Panel-inner Door |
|
- | |||||
| 11 | 5303925408 | Panel-outer Door, White |
|
- | |||||
| 12 | 215366301 | Frame - Nameplate,white |
|
- | |||||
| 12 | 216447900 | Insert-nameplate |
|
- | |||||
| 13 | 08016354 | Door Stop |
|
$ 36.07 | |||||
| 14 | 5303313518 | Washer, Sealing |
|
- | |||||
| 18 | 216446900 | Handle,white |
|
$ 52.34 | |||||
| 21 | 08005520 | Screw-door Stop |
|
- | |||||
| 22 | 5303210403 | Bearing |
|
- | |||||
| 25 | 216443600 | Bearing |
|
$ 0.68 | |||||
| 25 | 216022800 | Screw, Washer Head, 8, 18 X 1/2 |
|
- | |||||
| 26 | 5303300817 | Gasket-secondary |
|
- | |||||
| 27 | 5303212828 | Screw, Panel |
|
$ 16.63 | |||||
| 28 | 216282300 | Rack-shelf, Wide |
|
- | |||||
| 29 | 216334300 | End Cap-wide, Lh |
|
- | |||||
| 30 | 216334200 | End Cap-wide, Rh |
|
$ 39.80 | |||||
| 32 | 216390000 | Breather-air Duct, Door |
|
- | |||||
| 57 | 216446800 | Insert-handle |
|
- | |||||
| 64 | 216403700 | Plug-buttom, Base Door |
|
$ 58.12 | |||||
| 71 | 5303302714 | Screw, 8, 18 X 3/4, (2) |
|
- | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| *86360 | 5303296404 | Clip-handle Base |
|
$ 1.68 | |||||
| *86361 | 5303917276 | Insulation |
|
$ 330.91 |
