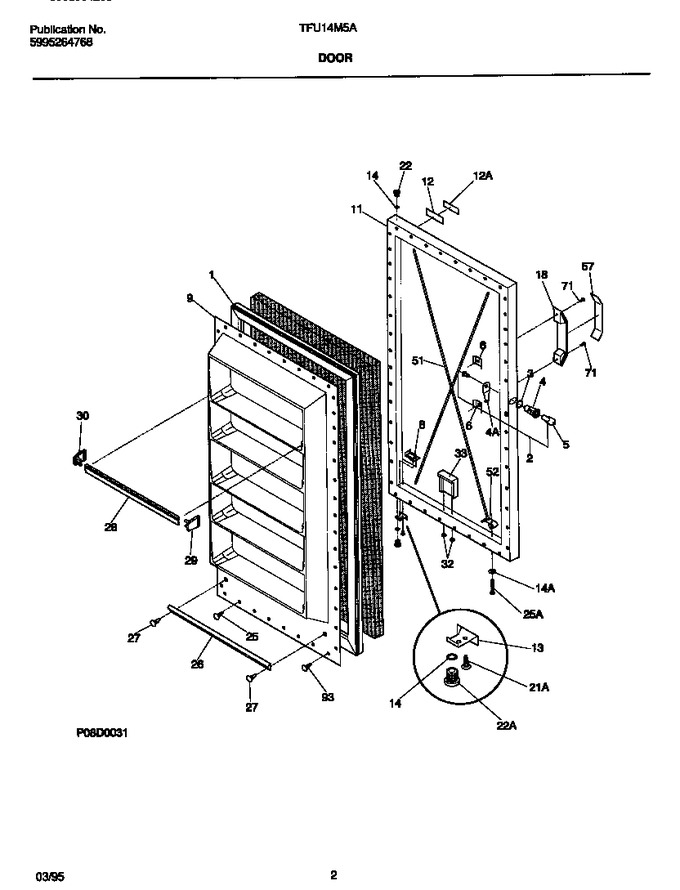

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206250		Gasket Door-gray		Appelez-nous	-
2	5303925107		Lock Assy		Appelez-nous	-
3	5300114366		Washer		Appelez-nous	-
4	216330800		Hook, Lock		Appelez-nous	-
4	5303283905		Cylinder, Lock		Appelez-nous	-
5	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
6	5303288185		Anchor-screw		Appelez-nous	-
8	5300091170		Reinforcement, Door Stop		Appelez-nous	-
9	216048711		Panel-inner Door, White		Appelez-nous	-
11	3205579		Panel-outer Door, White		Appelez-nous	-
12	216203600		Insert-bezel		Appelez-nous	-
12	5303208918		Bezel, Nameplate		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303307087		Washer		Appelez-nous	-
14	5303301500		Washer, Sealing		Appelez-nous	-
18	5303288185		Handle		Appelez-nous	-
21	08005520		Screw-door Stop		Appelez-nous	-
22	5303210403		Bearing		Appelez-nous	-
22	5303925197		Bearing				$ 23.73
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
25	216365400		Screw, Adj Wire		Appelez-nous	-
26	5303300817		Gasket-secondary		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
28	216161100		Rack-shelf, Wide, White		Appelez-nous	-
29	216272300		End Cap, Wide, White, Rh		Appelez-nous	-
30	216252300		End Cap, Wide, White, Lh		Appelez-nous	-
32	5309950074		Breather-air Duct, Door				$ 12.48
33	5303212700		Air Duct		Appelez-nous	-
51	08037953		Wire-door Adjustmnt		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
57	3017682		Insert Handle			Immediately	$ 43.24
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*49440	5303917276		Insulation				$ 330.91
