SELECT A DIAGRAM

01 - Cover


02 - Door

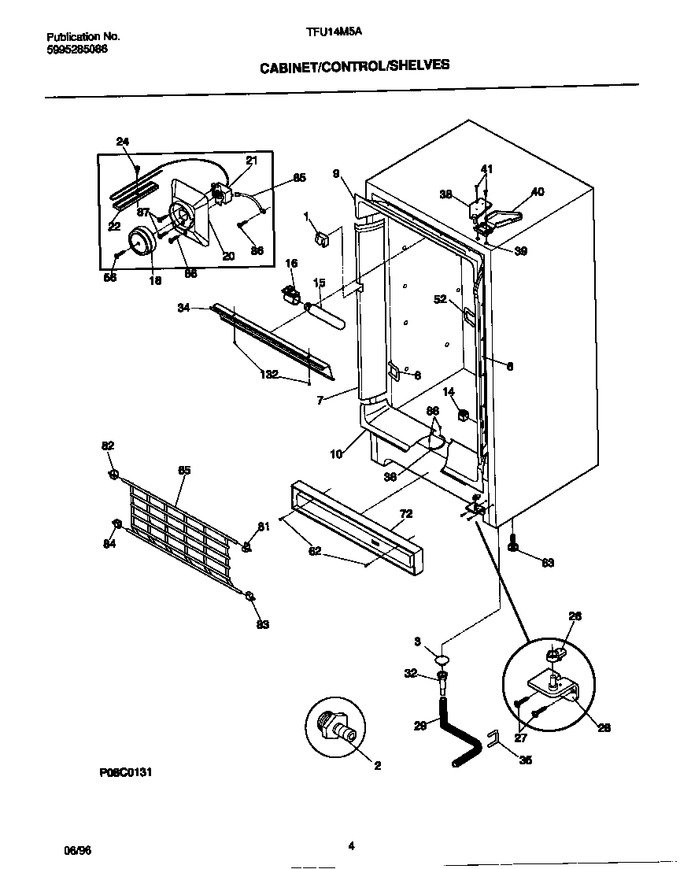

03 - Cabinet/control/shelves


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300123788		Condenser				$ 635.80
1	216013600		Support, Lock		Appelez-nous	-
2	216269500		Adapter, Drain				$ 14.81
3	216297600		Plug-drain		Appelez-nous	-
3	5304509722		Trim-shelf, Evaporator   (Replaces: 216097800)				$ 28.20
4	5303305677		Drier, Filter   (Replaces: 216099900)			Immediately	$ 31.67
5	216233900		Harness-wire		Appelez-nous	-
6	216108601		Breaker-hinge Side		Appelez-nous	-
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
7	216108701		Breaker, Lock Side		Appelez-nous	-
8	216013700		Clip, U, Lock		Appelez-nous	-
9	216073300		Breaker Top		Appelez-nous	-
10	216073200		Breaker Bottom		Appelez-nous	-
11	216225600		Support-rear Shelf		Appelez-nous	-
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	216404900		Heat Exchanger				$ 264.23
15	5304517886		Light Bulb/lamp   (Replaces: 216222700)			Immediately	$ 73.06
16	5300136117		Socket, Light/lamp				$ 52.46
18	216008602		Knob-temp Control		Appelez-nous	-
20	5303288184		Cover-control Housing		Appelez-nous	-
21	216405000		Control-temperature		Appelez-nous	-
22	08037931		Clamp, Cap Tube, Cold Control		Appelez-nous	-
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
26	5303210424		Ramp, Door		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose Drain   (Replaces: 216313500)			Immediately	$ 15.90
29	5304507765		Compressor, R134a, With Overload   (Replaces: 5303925366)			Immediately	$ 677.23
30	216008900		Starter-ptc		Appelez-nous	-
31	216100108		Overload Protector				$ 38.12
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
32	216147800		Wire-bale		Appelez-nous	-
34	216241701		Shield-light		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Lnd Hex Sems, 1/4-28 Unfx, Compressor				$ 10.34
35	216273000		Clip, Drain Hose				$ 22.42
36	06594651		Wire, Ground		Appelez-nous	-
36	297234400		Grid-top Evaporator   (Replaces: 216070100)				$ 369.42
37	216070200		Shelf-top Evaporator		Appelez-nous	-
38	216070300		Shelf-middle Evaporator		Appelez-nous	-
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	216070400		Shelf-bottom Evaporator		Appelez-nous	-
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
42	5303298960		Spacer, Compressor		Appelez-nous	-
43	5303212614		Clip Harness				$ 2.88
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
52	08037401		Retainer, Wire, Breaker				$ 2.85
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
56	09950853		Screw, Knob		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
65	216250200		Drop Front		Appelez-nous	-
72	216294304		Grille/kickplate, Grey		Appelez-nous	-
81	06599973		Support, Top Rh				$ 6.49
82	06599974		Support, Top Lh		Appelez-nous	-
83	06599975		Support, Bottom Rh				$ 5.99
84	06599976		Support, Bottom Lh		Appelez-nous	-
85	5300125347		Wire-ground, Temp Control		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
*14282	06594680		Clip, Breaker		Appelez-nous	-
*14283	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
