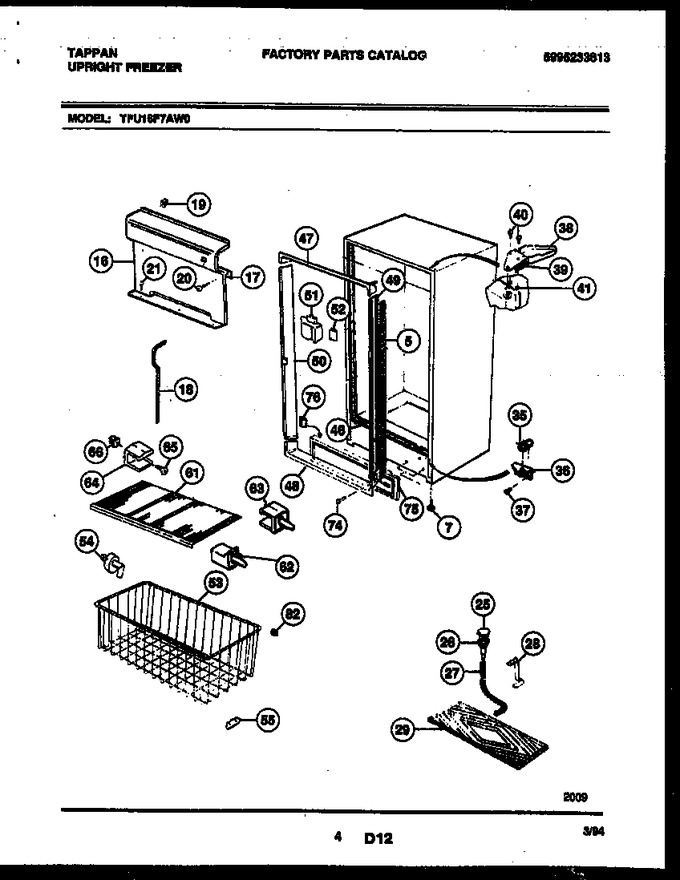

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 09950831 | Insulation (1/2`` X 2``) |
|
- | |||||
| 7 | 216218100 | Leg Leveler (4) |
|
$ 25.25 | |||||
| 16 | 216084100 | Panel-evaporator |
|
- | |||||
| 17 | 06599547 | Spacer |
|
- | |||||
| 18 | 216204900 | Gasket-panel (2) |
|
$ 51.45 | |||||
| 19 | 301036 | Insert Nut (4) (Replaces: 3017666) |
|
$ 15.90 | |||||
| 20 | 216858001 | Screw-panel To Liner (6) (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 21 | 5303161233 | Screw-panel To Evaporator (3) |
|
- | |||||
| 25 | 216503100 | Screen, Drain (Replaces: 5308037403) |
|
$ 62.17 | |||||
| 26 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 27 | 08037416 | Hose |
|
- | |||||
| 28 | 06594637 | Clip |
|
- | |||||
| 29 | 5308016387 | Defrost Drain Pan |
|
- | |||||
| 35 | 5303210424 | Ramp, Door Closer |
|
- | |||||
| 36 | 5303210383 | Hinge, Bottom |
|
- | |||||
| 37 | 154518001 | Screw-hinge (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 38 | 5303212912 | Cover, Hinge |
|
- | |||||
| 39 | 5303212935 | Hinge, Top |
|
- | |||||
| 40 | 5303212937 | Screw-hinge |
|
- | |||||
| 41 | 154518001 | Nut Insert-hinge (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 46 | 06594680 | Clip, Breaker |
|
- | |||||
| 47 | 216085900 | Breaker, Top |
|
- | |||||
| 48 | 216085800 | Breaker, Bottom |
|
- | |||||
| 49 | 216108801 | Breaker, Hinge Side |
|
- | |||||
| 50 | 216108901 | Breaker, Lock Side |
|
- | |||||
| 51 | 216013600 | Support, Lock |
|
- | |||||
| 52 | 216013700 | Clip Lock |
|
- | |||||
| 53 | 08010201 | Basket |
|
- | |||||
| 54 | 09948791 | Stop, Basket |
|
- | |||||
| 55 | 08009560 | Glide Basket (4) |
|
$ 35.25 | |||||
| 61 | 08037963 | Shelf-upper (3) |
|
- | |||||
| 62 | 5306594706 | Support-front Rh (4) |
|
- | |||||
| 63 | 5306594584 | Support-rear (6) |
|
$ 19.80 | |||||
| 64 | 5306594585 | Support, Rear (2) |
|
- | |||||
| 65 | 08005520 | Screw-door Stop |
|
- | |||||
| 66 | 06594537 | Insert, Nut |
|
- | |||||
| 74 | 5309950066 | Pin Base Trim (2) |
|
- | |||||
| 75 | 3017667 | Panel-base |
|
- | |||||
| 76 | 5300118003 | Bumper |
|
- | |||||
| 82 | 5305878546 | Bumper Basket (2) |
|
$ 7.23 | |||||
| 40A | 08037937 | Spacer-top Breaker (2) (non-illustrated) |
|
- | |||||
| 55A | 5303288196 | Spacers-basket (4) (non-illustrated) |
|
- | |||||
| 61A | 08037964 | Shelf-lower (1) |
|
- | |||||
| 62A | 5306594707 | Support-front Lh (4) |
|
- |
