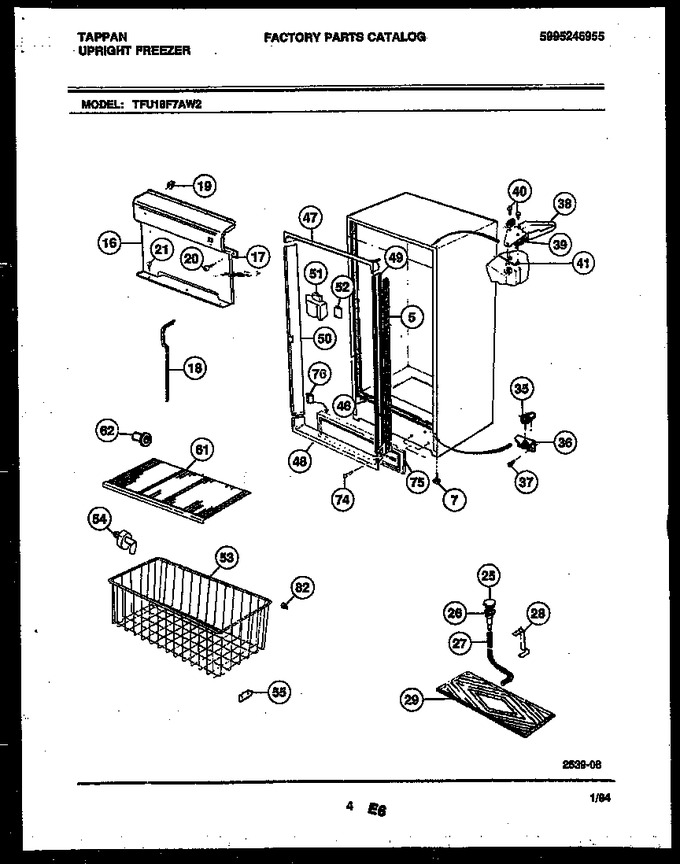

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	09950831		Insulation (1/2`` X 2``)		Appelez-nous	-
7	216218100		Leg Leveler (4)				$ 25.25
16	216084100		Panel-evaporator		Appelez-nous	-
17	06599547		Spacer		Appelez-nous	-
18	216204900		Gasket-panel (2)				$ 51.45
19	301036		Insert Nut (4)   (Replaces: 3017666)				$ 15.90
20	216858001		Screw-panel To Liner (6)   (Replaces: 5303161215)			Immediately	$ 10.85
21	216283900		Screw-panel To Evaporator (2)		Appelez-nous	-
25	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
26	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
27	216269601		Hose-drain		Appelez-nous	-
28	06594637		Clip		Appelez-nous	-
29	5308016387		Defrost Drain Pan		Appelez-nous	-
35	5303210424		Ramp, Door Closer		Appelez-nous	-
36	5303210383		Hinge, Bottom		Appelez-nous	-
37	154518001		Screw-hinge   (Replaces: 5303205738)				$ 10.54
38	5303212912		Cover, Hinge		Appelez-nous	-
39	5303212935		Hinge, Top		Appelez-nous	-
40	5303212937		Screw-hinge		Appelez-nous	-
41	154518001		Nut Insert-hinge   (Replaces: 5303205738)				$ 10.54
46	06594680		Clip, Breaker		Appelez-nous	-
47	216085900		Breaker, Top		Appelez-nous	-
48	216085800		Breaker, Bottom		Appelez-nous	-
49	216108801		Breaker, Hinge Side		Appelez-nous	-
50	216108901		Breaker, Lock Side		Appelez-nous	-
51	216013600		Support, Lock		Appelez-nous	-
52	216013700		Clip Lock		Appelez-nous	-
53	08010201		Basket		Appelez-nous	-
54	09948791		Stop, Basket		Appelez-nous	-
55	08009560		Glide Basket (4)				$ 35.25
61	216266801		Shelf-lower (1)		Appelez-nous	-
61	216266701		Shelf-upper (3)		Appelez-nous	-
62	216261100		Support-front & Rear (16)		Appelez-nous	-
74	5309950066		Pin Base Trim (2)		Appelez-nous	-
75	3017667		Panel-base		Appelez-nous	-
76	5300118003		Bumper		Appelez-nous	-
82	5305878546		Bumper Basket (2)				$ 7.23
40A	08037937		Spacer-top Breaker (2) (non-illustrated)		Appelez-nous	-
55A	5303288196		Spacers-basket (4) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
