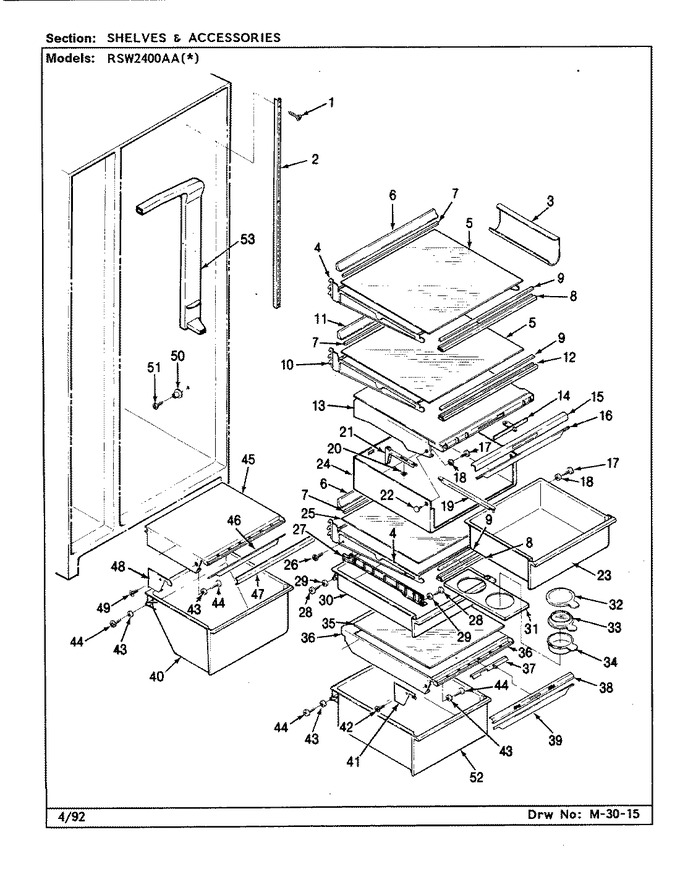

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 400037-28 | Screw | 1 |
|
- | ||||
| 2 | 67311-1 | Rail, Shelf Support | 1 |
|
- | ||||
| 3 | 67308-1 | Holder, Wine Bottle | 1 |
|
- | ||||
| 4 | 67273-2 | Frame, Shelf | 1 |
|
- | ||||
| 5 | 67267-6 | Glass, Cantilever | 1 |
|
- | ||||
| 6 | 67309-5 | Trim, Cantilever | 1 |
|
- | ||||
| 7 | 67266-5 | Shelf Seal | 1 |
|
- | ||||
| 8 | 67783-5 | Trim, Cantilever Shelf | 1 |
|
- | ||||
| 9 | 67265-5 | Gasket, Shelf Front | 1 |
|
- | ||||
| 10 | 67274-2 | Frame, Meat Shelf | 1 |
|
- | ||||
| 11 | 67309-7 | Trim, Cantilever | 1 |
|
- | ||||
| 12 | 67783-7 | Trim, Cantilever Shelf | 1 |
|
- | ||||
| 13 | 67649-1 | Meat Keeper Rail | 1 |
|
- | ||||
| 14 | 67074-1 | Control, Meat Keeper | 1 |
|
- | ||||
| 15 | 67071-2 | Trim, Meat Keeper | 1 |
|
- | ||||
| 16 | 67677-2 | Seal, Meat Pan | 1 |
|
- | ||||
| 17 | 65275-6 | Screw | 1 |
|
$ 5.48 | ||||
| 18 | 67423-1 | Roller, Crisper Pan | 1 |
|
- | ||||
| 19 | 67073-1 | Linkage, Meat Keeper | 1 |
|
- | ||||
| 20 | 431019-511 | Nut | 1 |
|
- | ||||
| 21 | 67072-3 | Actuator, Meat Keeper | 1 |
|
- | ||||
| 22 | 67688-1 | Plug Button | 1 |
|
- | ||||
| 23 | 67650-1 | Meat Pan Assy. | 1 |
|
- | ||||
| 24 | 67069-1 | Housing, Meat Pan | 1 |
|
- | ||||
| 25 | 67267-7 | Glass, Cantilever | 1 |
|
- | ||||
| 26 | 65275-32 | Screw | 1 |
|
- | ||||
| 27 | 67658-2 | Rail | 1 |
|
- | ||||
| 27 | 67658-1 | Slide Rail | 1 |
|
- | ||||
| 28 | 65275-6 | Screw | 1 |
|
$ 5.48 | ||||
| 29 | 67423-1 | Roller, Crisper Pan | 1 |
|
- | ||||
| 30 | 67650-14 | Pan, Crisper | 1 |
|
- | ||||
| 31 | 67164-2 | Organizer, Micro | 1 |
|
- | ||||
| 32 | 67632-1 | Cover, Plastic | 1 |
|
- | ||||
| 33 | 67630-1 | Cover, Glass | 1 |
|
- | ||||
| 34 | 67631-1 | Dish, Micro | 1 |
|
- | ||||
| 35 | 67489-6 | Glass, Crisper Shelf | 1 |
|
- | ||||
| 36 | 67891-2 | Shelf, Crisper | 1 |
|
- | ||||
| 37 | 67491-1 | Humidity Control | 1 |
|
- | ||||
| 38 | 67204-2 | Trim, Crisper | 1 |
|
- | ||||
| 39 | 67731-5 | Seal | 1 |
|
- | ||||
| 40 | 67650-13 | Pan, Crisper | 1 |
|
- | ||||
| 41 | 67895-1 | Support, Crisper Shelf (lt) | 1 |
|
- | ||||
| 41 | 67895-2 | Support, Crisper Shelf (rt) | 1 |
|
- | ||||
| 42 | 65275-28 | Screw | 1 |
|
- | ||||
| 43 | 67423-1 | Roller, Crisper Pan | 1 |
|
- | ||||
| 44 | 65275-34 | Screw | 1 |
|
- | ||||
| 45 | 67892-2 | Shelf, Crisper | 1 |
|
- | ||||
| 46 | 67731-5 | Seal | 1 |
|
- | ||||
| 47 | 67204-7 | Trim Crisper Lower | 1 |
|
- | ||||
| 48 | 67895-1 | Support, Crisper Shelf (lt) | 1 |
|
- | ||||
| 48 | 67895-2 | Support, Crisper Shelf (rt) | 1 |
|
- | ||||
| 49 | 65275-28 | Screw | 1 |
|
- | ||||
| 50 | 67162-1 | Support, Crisper | 1 |
|
- | ||||
| 51 | W11233072 | Screw (Replaces: 400026-12) | 1 |
|
Immediately | $ 12.62 | |||
| 52 | 67650-11 | Pan, Crisper | 1 |
|
- | ||||
| 53 | 67526-2 | Tunnel, Air | 1 |
|
- | ||||
| 53 | 28013-2 | Rivet, Air Tunnel | 1 |
|
- |
