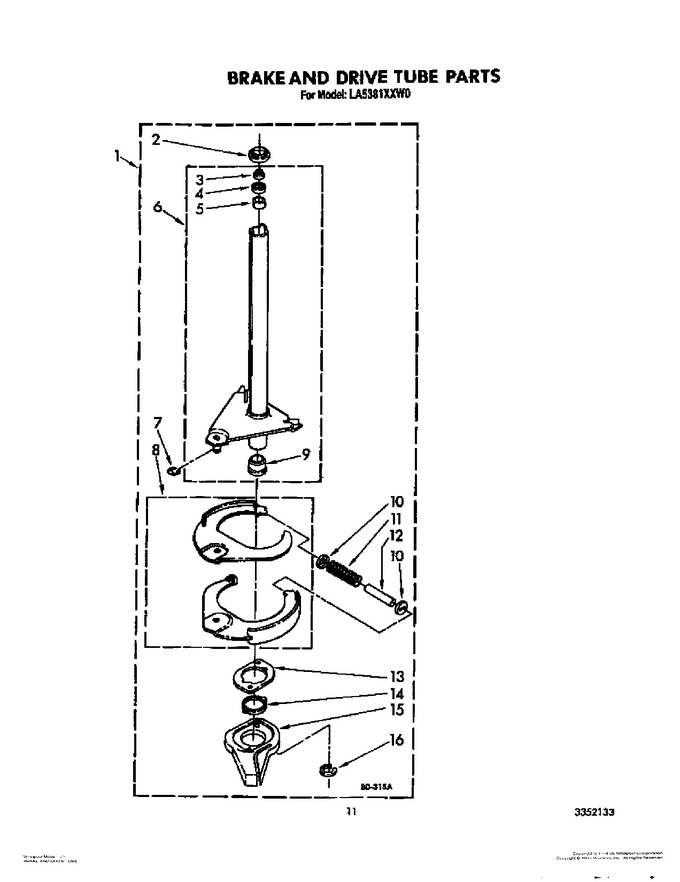

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10820043		Brake And Drive Tube (complete)   (Replaces: 388952)			Immediately	$ 195.58
2	WP62658		Ring, Thrust   (Replaces: 62658)			Immediately	$ 11.17
3	WP91939		Seal. Oil   (Replaces: 91939)			Immediately	$ 6.47
4	WP356427		Seal, Drive Tube   (Replaces: 356427)			Immediately	$ 6.47
5	356937		Spacer, Drive Tube		Appelez-nous	-
6	WP64208		Tube, Basket Drive (includes Illus. 3, 4, 5, & 9)   (Replaces: 64027)				$ 272.29
7	W10083190		Ring, Retaining   (Replaces: 64035)				$ 10.03
8	285438		Shoe, Brake   (Replaces: 64232)				$ 123.64
9	62703		``t`` Bearing, Spin Tube			Immediately	$ 277.74
10	285658		Cap, Brake Spring (2)   (Replaces: 62648)				$ 9.61
11	387806		Spring, Brake		Appelez-nous	-
12	285658		Sleeve, Brake Spring   (Replaces: 62909)				$ 9.61
13	WP8546461		Cam, Brake Release   (Replaces: 63023)				$ 7.48
14	WP63022		Sleeve, Cam   (Replaces: 63022)				$ 41.30
15	285790		Driver, Brake Cam   (Replaces: 64194)			Immediately	$ 38.92
16	285208		Lubricant (use Only In Brake Shoe Assembly On Roller & Pin				$ 41.86
16	W11033823		Ring, Retaining   (Replaces: 90368)				$ 11.21
