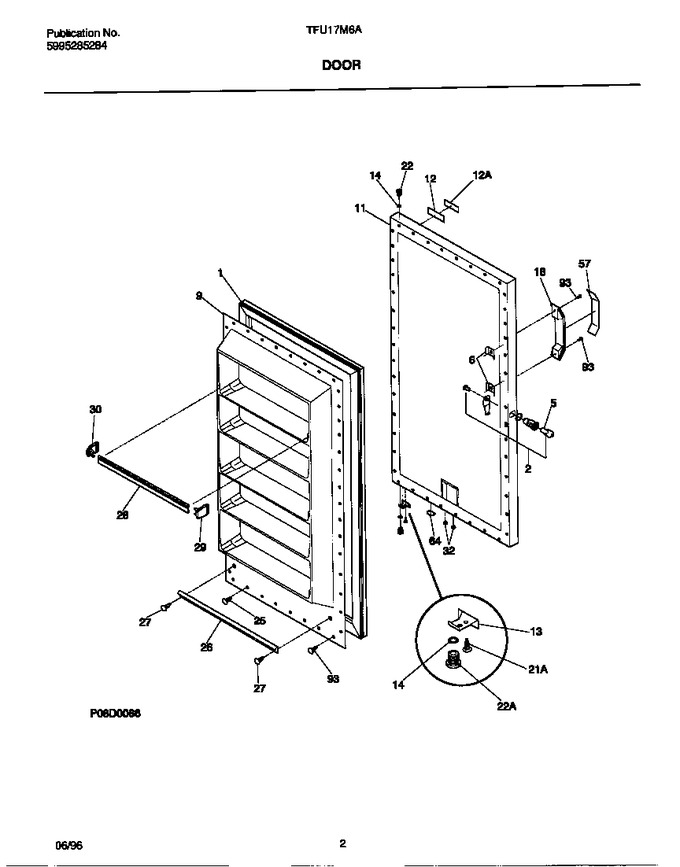

01 - Cover


02 - Door


03 - Cabinet/controls/shelves


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
6	218990001		Screw-anchor,8-18   (Replaces: 5300158222)				$ 16.30
9	216063507		Panel-inner Door, White		Appelez-nous	-
11	5303925411		Panel-outer Door Assy, W\foam Insul, White		Appelez-nous	-
12	08037409		Bezel Nameplate		Appelez-nous	-
12	216203600		Insert-bezel		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
18	216446900		Handle,white				$ 52.34
21	08005520		Screw-door Stop		Appelez-nous	-
22	216443600		Bearing				$ 0.68
22	5303210403		Bearing		Appelez-nous	-
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	06594681		Gasket, Secondary		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
28	3017670		Rack-shelf, Wide		Appelez-nous	-
29	216334300		End Cap-wide, Lh, (1)		Appelez-nous	-
30	216334200		End Cap-wide, Rh (1)				$ 39.80
32	216390000		Breather-air Duct, Door		Appelez-nous	-
57	216446800		Insert-handle		Appelez-nous	-
64	216403700		Plug-buttom, Base Door				$ 58.12
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*41080	5303296404		Clip-handle Base				$ 1.68
*41081	5303917276		Insulation				$ 330.91
