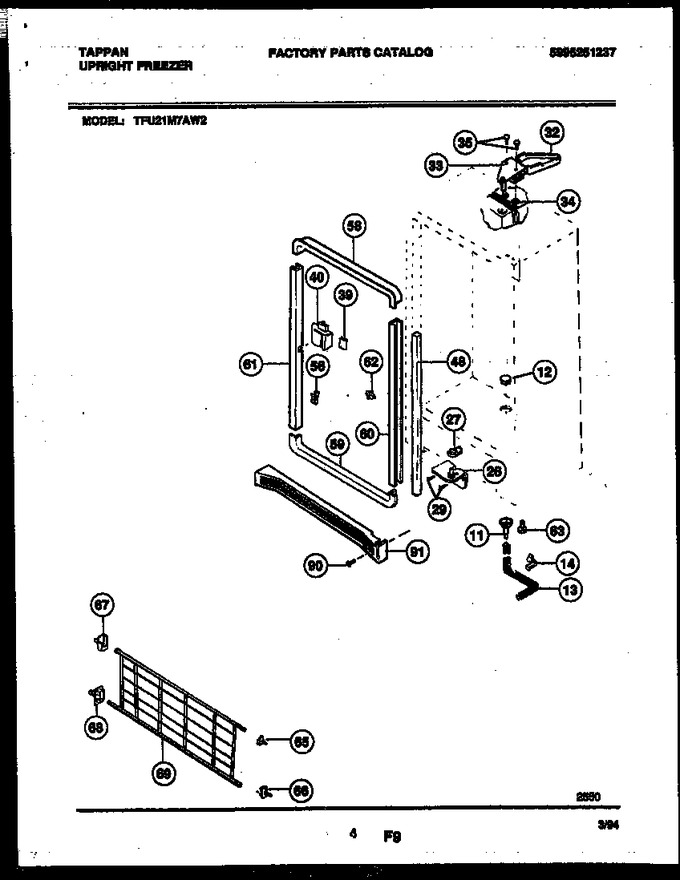

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
12	5306593887		Plug-drain		Appelez-nous	-
13	216269600		Hose-drain		Appelez-nous	-
14	216273000		Clamp-drain Hose				$ 22.42
26	216247400		Hinge-bottom		Appelez-nous	-
27	5303210424		Ramp, Door Closer		Appelez-nous	-
29	154518001		Screw-bottom Hinge   (Replaces: 5303205738)				$ 10.54
32	5303212912		Cover, Hinge-white		Appelez-nous	-
33	5303212935		Top Hinge		Appelez-nous	-
34	5303294372		Nut Insert-hinge				$ 43.68
35	5303212937		Screw-top Hinge		Appelez-nous	-
39	216013700		Clip		Appelez-nous	-
40	216013600		Support		Appelez-nous	-
48	09950831		Insulation		Appelez-nous	-
56	06594680		Clip, Breaker		Appelez-nous	-
58	216085900		Breaker, Top		Appelez-nous	-
59	216085800		Breaker, Bottom		Appelez-nous	-
60	216107501		Breaker Hinge		Appelez-nous	-
61	216107601		Breaker, Lock Side		Appelez-nous	-
62	5309918806		Switch			Immediately	$ 21.97
63	205363701		Leveling Leg Adj. (4)		Appelez-nous	-
65	06599973		Support, Top Rh				$ 6.49
66	06599975		Support, Bottom Rh				$ 5.99
67	06599974		Support, Top Lh		Appelez-nous	-
68	06599976		Support, Bottom Lh		Appelez-nous	-
69	216250300		Drop Front		Appelez-nous	-
90	5303302714		Screw-panel-base		Appelez-nous	-
91	216294404		Panel Base-gray		Appelez-nous	-
13A	216269500		Hose-adapter (non-illustrated)				$ 14.81
