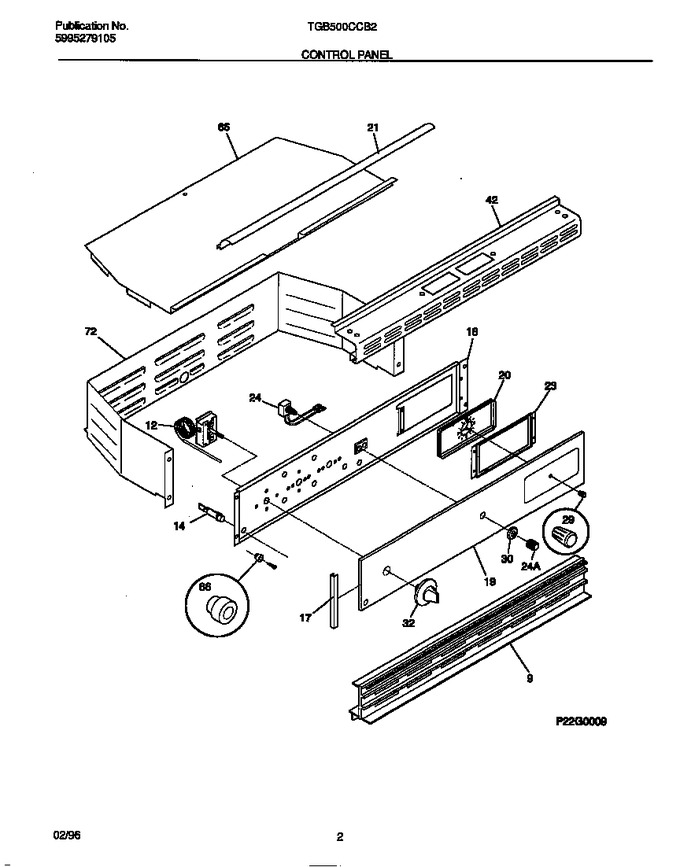

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	318027301		Trim-vent, Black		Appelez-nous	-
12	318058901		Thermostat-oven		Appelez-nous	-
14	318044600		Light-indicator		Appelez-nous	-
16	318023402		Plate, Instrument Mtg		Appelez-nous	-
19	318000111		Panel-control		Appelez-nous	-
20	318011100		Clock/timer, Analog 1 Stem		Appelez-nous	-
21	318056901		Trim-canopy/shield, Black				$ 293.32
23	3202088		Bracket-clock Mtg		Appelez-nous	-
24	5303299474		Knob-light Switch, Black		Appelez-nous	-
24	318090001		Switch-light/lamp		Appelez-nous	-
24	5303302303		Nut, Hex, Light Switch (not Illustrated)		Appelez-nous	-
29	316029000		Knob-clock		Appelez-nous	-
30	5303316767		Nut-decorative, Black		Appelez-nous	-
32	318016814		Knob-thermostat		Appelez-nous	-
42	318028020		Trim-vent		Appelez-nous	-
65	5303308466		Cover-control Housing		Appelez-nous	-
66	3202093		Bumper, Rubber, (4)		Appelez-nous	-
68	5303302397		Housing,control		Appelez-nous	-
*83720	5303280380		Seal, Sponge		Appelez-nous	-
*83721	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2)		Appelez-nous	-
*83722	5303300414		Spacer, Cork & Rubber				$ 13.18
*83723	5303311528		Screw, Oval Hd, 20 X 5/8		Appelez-nous	-
