SELECT A DIAGRAM

02 - Top And Cabinet , Literature And Optional


03 - Controls And Rear Panel


04 - Agitator, Basket And Tub


05 - Miscellaneous


06 - Brake, Clutch, Gearcase, Motor And Pump


07 - Machine Base


08 - Wiring Harness


09 - Brake And Drive Tube


10 - Gearcase

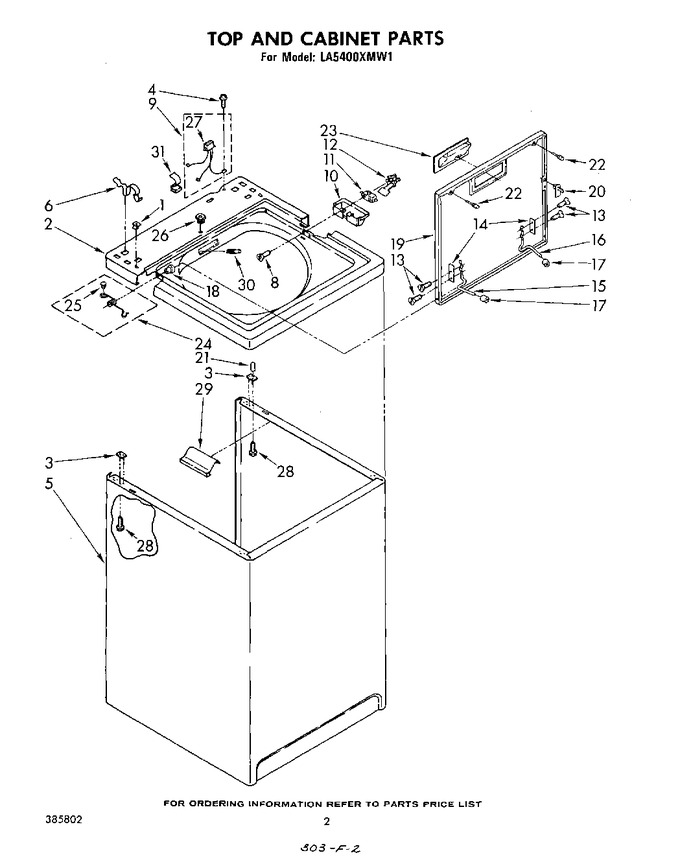

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	358473		Nut, Push-in (2)				$ 5.84
2	63092		Top (almond)		Appelez-nous	-
2	63091		Top (white)		Appelez-nous	-
2	63095		Top (golden Harvest)		Appelez-nous	-
3	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 6.92
4	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
5	63128		Cabinet (white)		Appelez-nous	-
5	63132		Cabinet (golden Harvest)				$ 204.60
5	63129		Cabinet (almond)		Appelez-nous	-
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.02
8	354764		Screw & Washer, Lid Switch (2)		Appelez-nous	-
9	63352		Harness, Lid Switch		Appelez-nous	-
10	WP359231		Shield, Lid Switch   (Replaces: 359231)				$ 7.58
11	W10820036		Switch, Lid   (Replaces: 359230)			Immediately	$ 27.45
12	357347		Actuator, Lid Switch		Appelez-nous	-
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 18724)			Immediately	$ 6.47
14	WP21097		Pad, Lid Hinge (2)   (Replaces: 21097)				$ 7.02
15	WP54584		Hinge, Lid (l.h.)   (Replaces: 54584)				$ 30.09
16	WP54583		Hinge, Lid (r.h.)   (Replaces: 54583)				$ 26.60
17	19119		Bumper, Lid Hinge				$ 5.75
18	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
19	63059		Lid (almond)				$ 5.04
19	63058		Lid (white)				$ 37.72
19	61427		Lid (golden Harvest)   (Replaces: 63062)			Immediately	$ 79.99
20	WP358684		Strike, Lid Switch   (Replaces: 358684)			Immediately	$ 6.90
21	W10491983		Cap, Screw   (Replaces: 359702)		Appelez-nous	-
22	WP9724509		Bumper, Lid (2)   (Replaces: 93770)			Immediately	$ 7.14
23	379885		Handle, Lid (almond)		Appelez-nous	-
23	379888		Handle, Lid (golden Harvest)		Appelez-nous	-
23	379884		Handle, Lid (white)		Appelez-nous	-
24	53749		Spring & Button, Lid ((l.h.))		Appelez-nous	-
24	53748		Spring & Button, Lid ((r.h.))		Appelez-nous	-
25	54690		Plug, Button		Appelez-nous	-
26	358472		Stop, Push-in Top		Appelez-nous	-
27	62888		Plug, Terminal (3-way)				$ 37.28
28	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 384435)			Immediately	$ 7.07
29	63392		Support Protector				$ 8.19
30	354239		Rivet, Serial Nameplate		Appelez-nous	-
31	285208		Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin)				$ 41.86
31	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
31	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
31	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
31	261890		Golden Harvest		Appelez-nous	-
31	799351		Thinner (1 Gal.)		Appelez-nous	-
31	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
31	978883		Almond (uncut)		Appelez-nous	-
31	261891		Golden Harvest		Appelez-nous	-
31	350572		Oil, Gearcase (16 Oz.)			Immediately	$ 82.45
31	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
31	WP285195		Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195)				$ 93.95
31	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
31	385238		Guide, Laundry		Appelez-nous	-
31	383976		Sheet, Installation Instructions		Appelez-nous	-
31	385031		Guide, Use And Care		Appelez-nous	-
31	386157		Label, Energy Guide		Appelez-nous	-
31	385802		List, Repair Parts		Appelez-nous	-
31	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
31	350941		Leveler (thinner)		Appelez-nous	-
31	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
