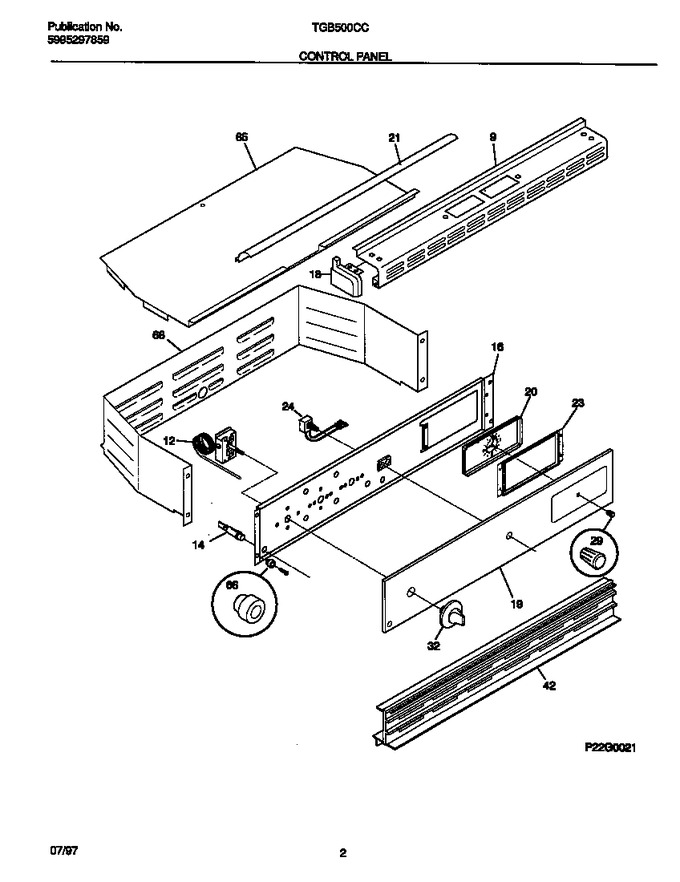

SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Burner


04 - Body


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	318028020		Trim-splasher		Appelez-nous	-
12	318058901		Thermostat-oven		Appelez-nous	-
14	318044600		Light-indicator		Appelez-nous	-
16	318023402		Plate, Instrument Mtg		Appelez-nous	-
18	5303280339		End Cap, Black, Lh		Appelez-nous	-
18	5303280338		End Cap, Black, Rh (not Illustrated)		Appelez-nous	-
19	318000111		Panel-control		Appelez-nous	-
20	318011100		Clock/timer, Analog 1 Stem		Appelez-nous	-
21	318056901		Trim-canopy/shield, Black				$ 293.32
23	3202088		Bracket-clock Mtg		Appelez-nous	-
24	5303280262		Switch-oven Light, Push		Appelez-nous	-
24	5303300411		Bezel-switch (not Illustrated)		Appelez-nous	-
24	5303302303		Nut, Hex, Light Switch (not Illustrated)		Appelez-nous	-
29	318036310		Knob-clock, (3)				$ 41.32
32	318016814		Knob-thermostat		Appelez-nous	-
42	318027301		Trim-vent, Black		Appelez-nous	-
65	5303308466		Cover-control Housing		Appelez-nous	-
66	3202093		Bumper, Rubber, (4)		Appelez-nous	-
68	5303302397		Housing,control		Appelez-nous	-
*36280	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*36281	5303280380		Seal, Sponge		Appelez-nous	-
*36282	5303300414		Spacer, Cork & Rubber				$ 13.18
*36283	5304414648		Screw, 10-24 X 1/4, Rail Mtg, Control Pnl   (Replaces: 5303308458)				$ 14.18
*36284	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
