SELECT A DIAGRAM

01 - Cover


02 - Control Panel


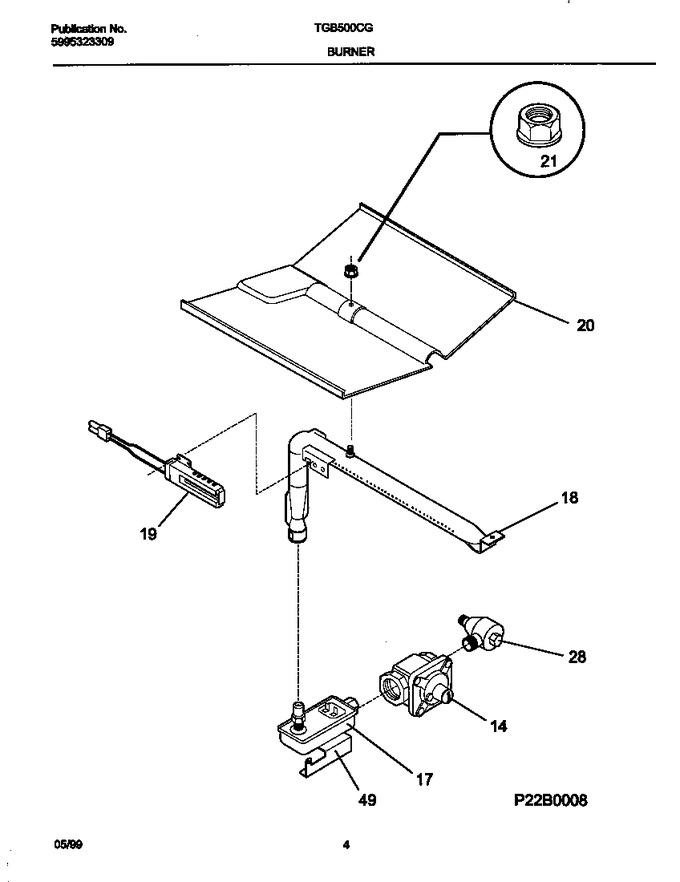

03 - Burner


04 - Body/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026510		Trim-oven Door,black		Appelez-nous	-
4	3202420		Glass-oven Door, Black, Outer		Appelez-nous	-
6	318073600		Shield-air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
8	5303323828		Glass-oven Door		Appelez-nous	-
9	318156604		Line Oven Door		Appelez-nous	-
10	5303316748		Screw-handle, (2)		Appelez-nous	-
12	5303316768		Seal-oven Door, Lower Oven		Appelez-nous	-
16	5303016336		Glass-oven Door, Heat Barrier, Lower Oven		Appelez-nous	-
17	318162601		Support-glass,lower Oven		Appelez-nous	-
18	5303299723		Seal-rope,lower Door		Appelez-nous	-
23	5303325091		Hinge-oven Door		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
33	3203715		Glass-drawer, Front		Appelez-nous	-
34	318116000		Panel-inner Drw		Appelez-nous	-
35	318107000		Drawer,broiler		Appelez-nous	-
36	5303935079		Roller		Appelez-nous	-
37	3203722		Rail-drawer Rh		Appelez-nous	-
37	3203723		Rail,drawer ,lh		Appelez-nous	-
39	318040201		Handle-door, Black, Oven		Appelez-nous	-
43	318107800		Liner,broiler Door		Appelez-nous	-
44	318088300		Spring-broiler		Appelez-nous	-
45	318024400		Hinge-broiler,rh		Appelez-nous	-
45	318024401		Hinge-broiler,lh		Appelez-nous	-
46	318126200		Pan-broiler		Appelez-nous	-
47	318126300		Insert-broiler Pan		Appelez-nous	-
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
54	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
59	3202113		Button, Plug		Appelez-nous	-
