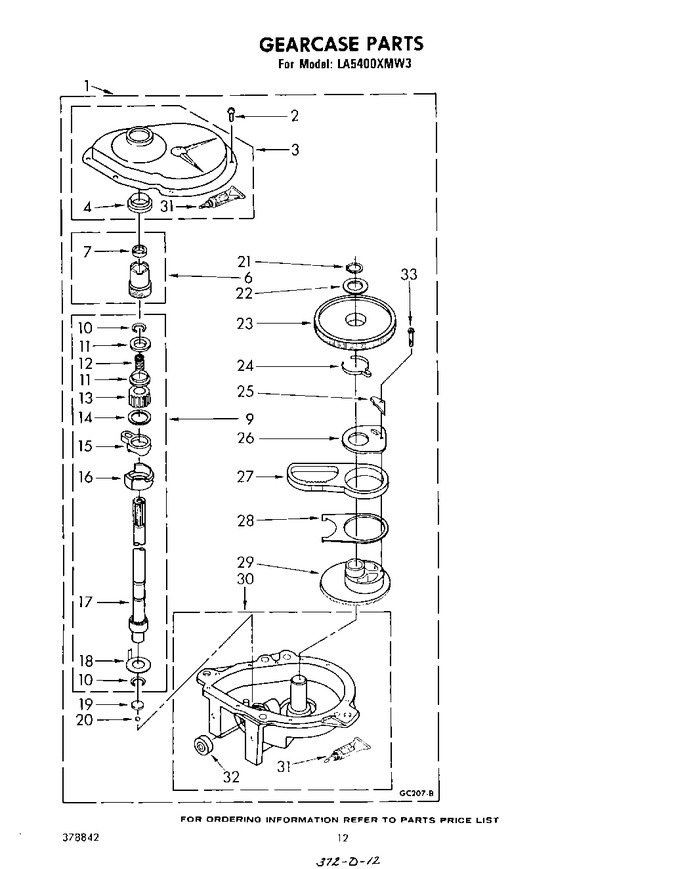

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 385899 | Gearcase (complete) |
|
- | |||||
| 2 | WP3351614 | Screw, 10-24 X 3/8 (8) (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 3 | 285202 | Cover, Gearcase (Replaces: 62685) |
|
- | |||||
| 4 | WP3349985 | Seal, Gearcase Cover (Replaces: 62787) |
|
Immediately | $ 23.59 | ||||
| 6 | 3360629 | Pinion, Spin (Replaces: 63320) |
|
Immediately | $ 422.22 | ||||
| 7 | WP356427 | Seal, Spin Shaft (Replaces: 356427) |
|
Immediately | $ 6.47 | ||||
| 9 | WP389387 | Shaft, Agitator (complete) (Replaces: 63274) |
|
$ 242.73 | |||||
| 10 | 90369 | Ring, Retaining (2) |
|
$ 5.04 | |||||
| 11 | 62677 | Retainer, Spring |
|
$ 6.25 | |||||
| 12 | 62676 | Spring, Agitator |
|
$ 56.99 | |||||
| 13 | WP389387 | Gear, Agitator (Replaces: 63273) |
|
$ 242.73 | |||||
| 14 | 62619 | Washer, Agitator Gear |
|
$ 12.11 | |||||
| 15 | WP389387 | Follower, Cam (Replaces: 62580) |
|
$ 242.73 | |||||
| 16 | WP389387 | Cam, Agitator (Replaces: 62581) |
|
$ 242.73 | |||||
| 17 | WP389387 | Shaft, Agitator (includes Illus. 13) (Replaces: 63269) |
|
$ 242.73 | |||||
| 18 | 62618 | Washer, Cam Thrust |
|
- | |||||
| 19 | 285205 | Bearing, Thrust (Replaces: 16018) |
|
$ 6.77 | |||||
| 20 | 285205 | Ball, Bearing (Replaces: 85529) |
|
$ 6.77 | |||||
| 21 | 95082 | Ring, Retaining |
|
- | |||||
| 22 | 285292 | Washer Kit, Thrust |
|
- | |||||
| 23 | 3360629 | Gear, Spin (Replaces: 62570) |
|
Immediately | $ 422.22 | ||||
| 24 | 285715 | Spring, Spin Gear (Replaces: 62679) |
|
$ 125.48 | |||||
| 25 | 285715 | Pawl, Spin Gear (Replaces: 62678) |
|
$ 125.48 | |||||
| 26 | 285715 | Retainer, Rack (Replaces: 62610) |
|
$ 125.48 | |||||
| 27 | 3360629 | Rack, Connecting (Replaces: 62534) |
|
Immediately | $ 422.22 | ||||
| 28 | 3360629 | Actuator, Shift (Replaces: 62621) |
|
Immediately | $ 422.22 | ||||
| 29 | 62528 | Gear, Main Drive |
|
- | |||||
| 30 | 100092414 | Spin Pinion Assembly, Gearcase (includes Illus. 21, 22 & 29) (Replaces: 63167) |
|
$ 42.29 | |||||
| 31 | WP285195 | Sealer, Gasket (20 Fl. Oz.) (6 Ml) (Replaces: 285195) |
|
$ 93.95 | |||||
| 32 | 285352 | Seal Kit, Thrust Plug |
|
Immediately | $ 38.03 | ||||
| 33 | 350572 | Oil, Gearcase (16 Oz.) |
|
Immediately | $ 82.45 | ||||
| 33 | 62638 | Stud, Shoulder Pawl |
|
- |
