SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner

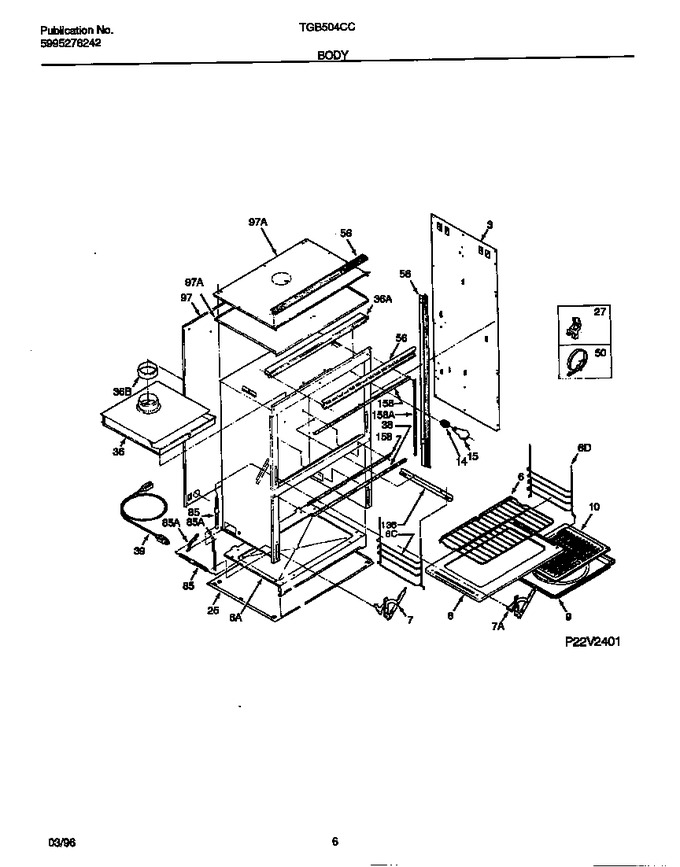

04 - Body


05 - Drawer/door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303317132		Wrapper-side Outer		Appelez-nous	-
6	5303209887		Glide-broiler Rack		Appelez-nous	-
6	3201495		Rack-oven,lower		Appelez-nous	-
6	3018717		Glide-oven Rack		Appelez-nous	-
6	08012158		Rack-oven,upper ,(2)		Appelez-nous	-
7	5303298312		Cam-oven Door, Lh		Appelez-nous	-
7	5303205940		Cam-oven Door-rh		Appelez-nous	-
7	5303298313		Cam-oven Door, Rh		Appelez-nous	-
7	3203010		Clip, Hinge, (4) (not Illustrated)   (Replaces: 5303012323)				$ 14.89
7	5303205939		Cam-oven Door-lh		Appelez-nous	-
8	5303298338		Panel-oven Bottom		Appelez-nous	-
8	5303298314		Panel-oven Bottom		Appelez-nous	-
9	5303310521		Pan-broiler		Appelez-nous	-
10	5303310520		Insert-broiler Pan		Appelez-nous	-
14	08011171		Socket-light/lamp, Oven		Appelez-nous	-
15	3201908		Lamp-oven Light		Appelez-nous	-
25	5303317712		Shield-heat,lower		Appelez-nous	-
27	5303284616		Clip-thermo Bulb				$ 9.86
36	318076801		Box-flue		Appelez-nous	-
36	5303317121		Cap-flue		Appelez-nous	-
36	5303298341		Flue		Appelez-nous	-
38	5303317128		Shield-heat		Appelez-nous	-
39	5303295308		Plug-disconnect (not Illustrated)		Appelez-nous	-
39	5303317120		Cord-electric		Appelez-nous	-
39	08012198		Clamp-power Cord (not Illustrated)		Appelez-nous	-
50	3051064		Retainer		Appelez-nous	-
56	318027200		Trim-oven Front		Appelez-nous	-
56	318034600		Cap-end Top (not Illustrated)		Appelez-nous	-
56	318034500		Cap-end Bottom, Rh (not Illustrated)		Appelez-nous	-
56	318029000		Trim-bodyside, Lh (not Illustrated)		Appelez-nous	-
56	318029001		Trim-bodyside,rh		Appelez-nous	-
56	318028200		Trim-oven Top		Appelez-nous	-
56	318034501		Cap-end Bottom, Lh (not Illustrated)		Appelez-nous	-
85	5303207651		Spring-oven Door,upper		Appelez-nous	-
85	5303317711		Spring-oven Door,lower		Appelez-nous	-
85	08012781		Sleeve-door Spring (not Illustrated)		Appelez-nous	-
85	5303317125		Bracket-spring, Lower		Appelez-nous	-
85	5303317126		Bracket-spring,upper		Appelez-nous	-
97	812T007F02		Wrapper-top-inner		Appelez-nous	-
97	5303317130		Wrapper-top		Appelez-nous	-
97	5303317131		Wrapper-back		Appelez-nous	-
136	5303317129		Angle-rack Guide		Appelez-nous	-
158	5303207644		Seal-door,black ,top Broiler		Appelez-nous	-
158	5303295311		Seal-side,bake Oven		Appelez-nous	-
*36401	5303317134		Harness-wiring		Appelez-nous	-
*36402	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*36403	08012795		Screw 8-18 X 2-1/4 (2)		Appelez-nous	-
*36404	3200313		Insulation,oven Back & Top		Appelez-nous	-
*36405	3200323		Insulation,top & Sides		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
